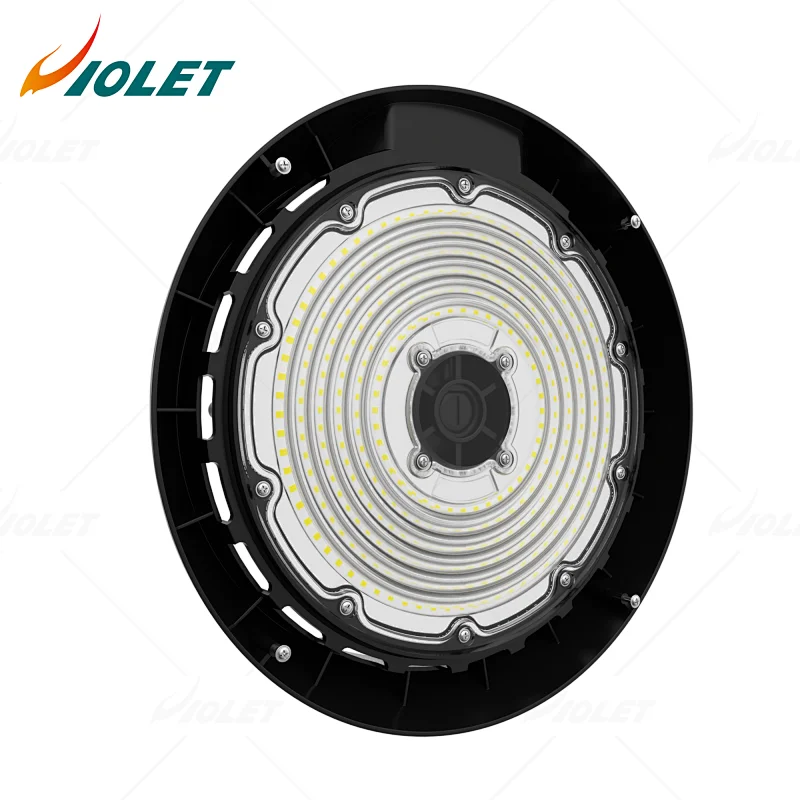

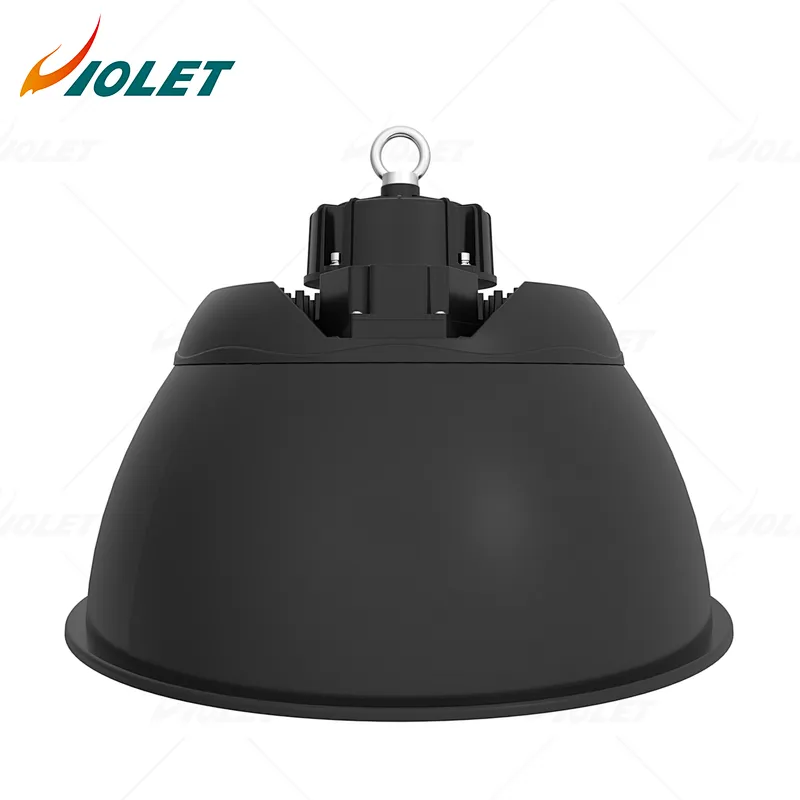

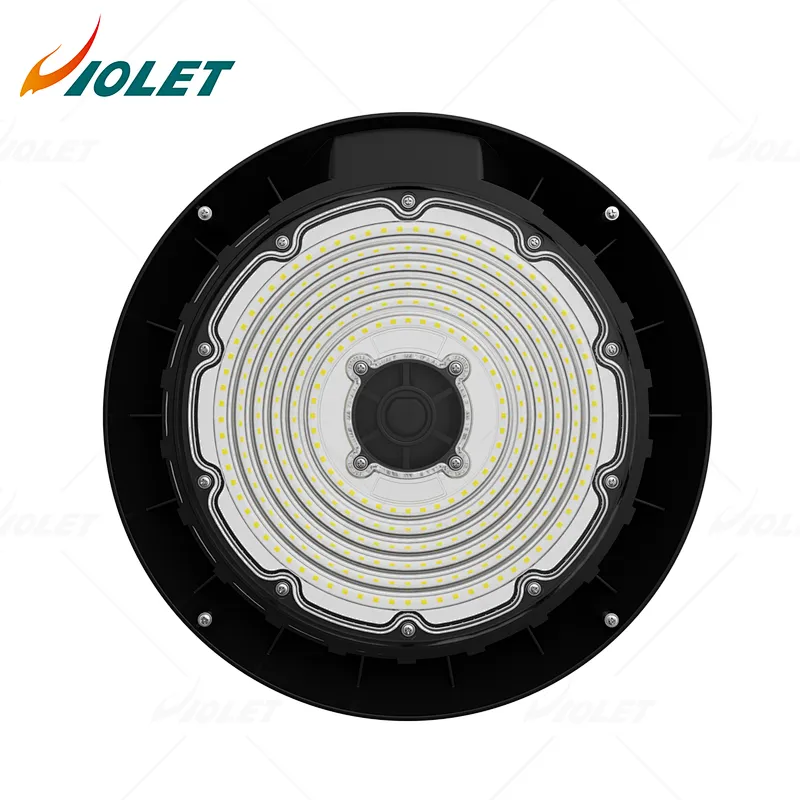

IP65 Warehouse High Bay Light Waterproof 150W/170W UFO LED High Bay Light for Industrial
IP65 Warehouse High Bay Light Waterproof 150W/170W UFO LED High Bay Light for Industrial
ufo led high bay light wholesale
ufo led high bay light wholesaler
ufo led high bay light cover
ufo led high bay light installation method
ufo led high bay light supplier
ufo led high bay light factory

IP65 Warehouse High Bay Light Waterproof 150W/170W UFO LED High Bay Light for Industrial

Categories: High Bay Light
Model NO.: High Bay Light
General Characteristics:

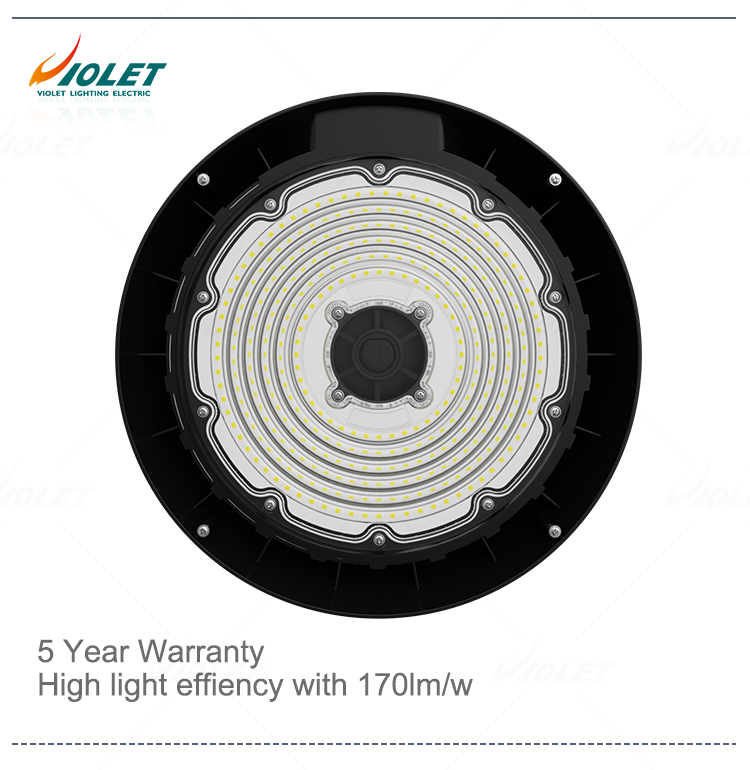

1. Reach grade A for the new ERP energy efficiency level. And the maximum luminous efficiency up 170LM/W. Surpass most similar products on the market;

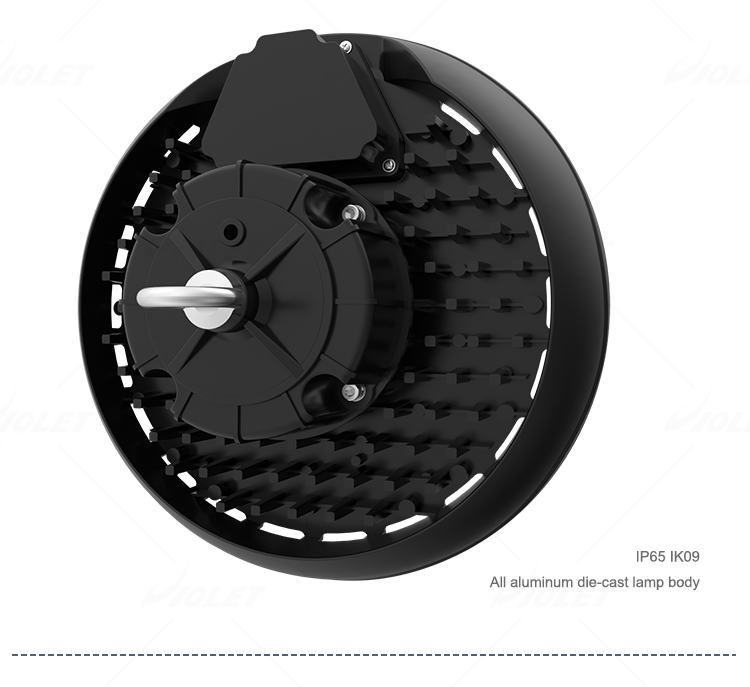

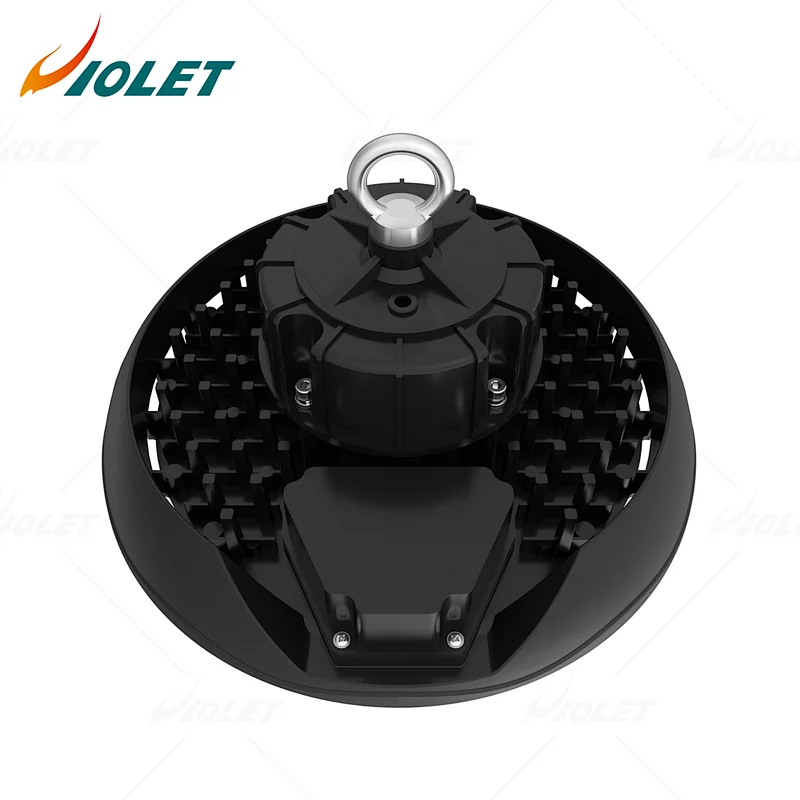

2. All aluminum die-cast lamp body; Not a cheap fin-type lamp body on the market; IK09;

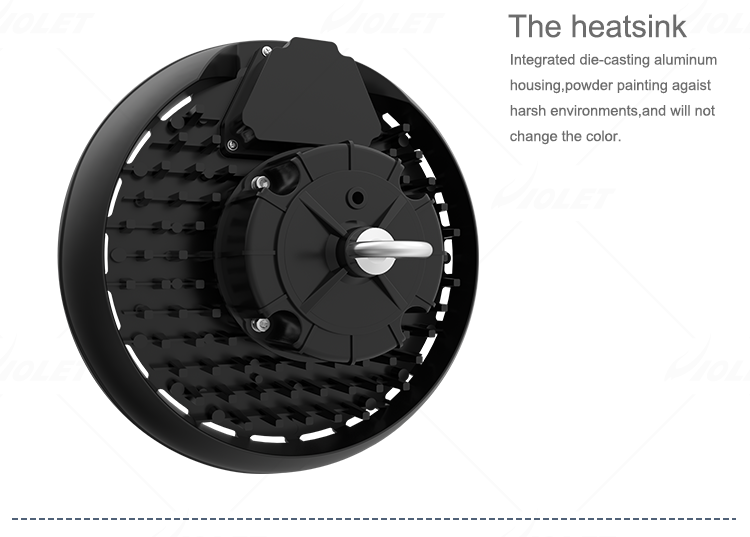

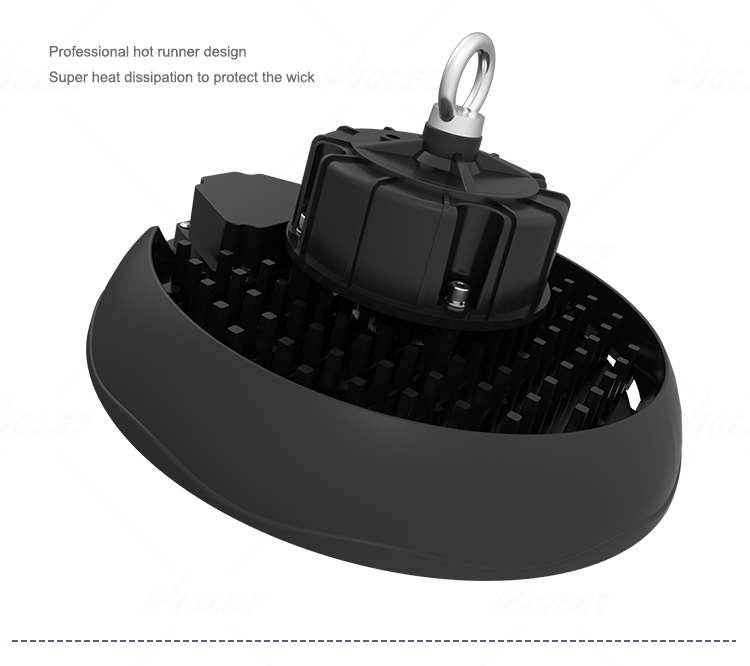

3. Super heat dissipation to protect the wick; Bring higher working stability and improve service life;

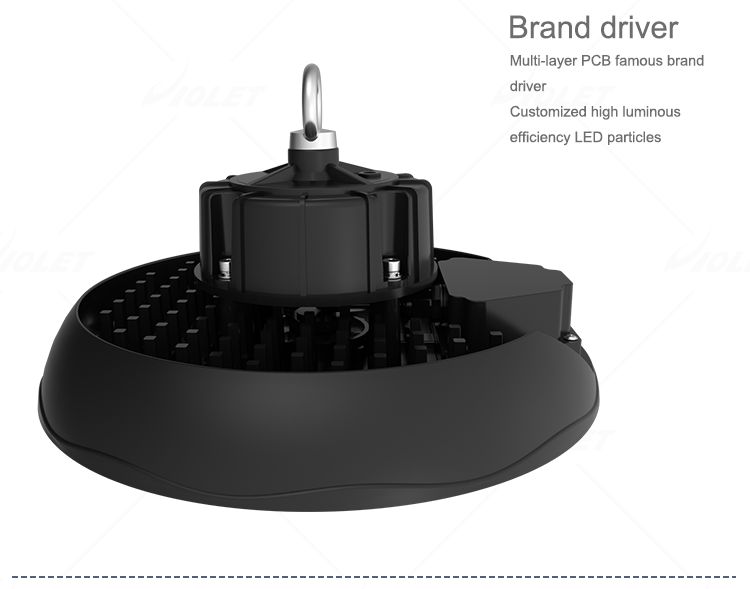

4. Multi-layer PCB brilliant driver; Customized high luminous efficiency LED particles.


Applications Recommendation:

Wide application prospects. Widely used in warehouses, tunnels, manufacturing, mining, petroleum, stadiums, supermarket, etc.

Product Name: New Warehouse Industrial IP65 Waterproof Linear 150W 170W UFO LED High Bay Light
Color Temperature (CCT): 3000K-6500K

Lamp Luminous Efficiency (LM/W): 130LM/W-170LM/W
Color Rendering Index (Ra): Ra≥70&Ra≥80
Lifespan (Hour): 50000
Working Time (Hour): 50000
Product Weight (KG): 2.6
Input Voltage (V): AC 220V (±10%)
Lamp Luminous Flux (LM): 15000
Working Temperature (℃): -20-45
Lamp Body Material: Aluminum Alloy
IP Rate: IP65

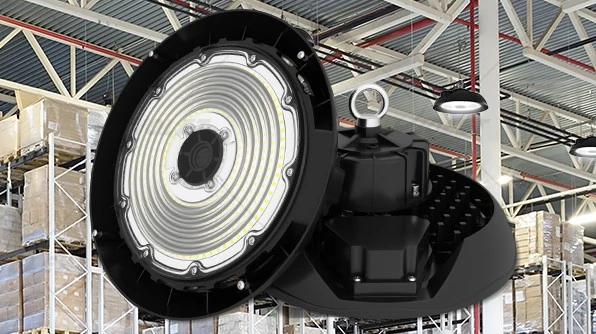

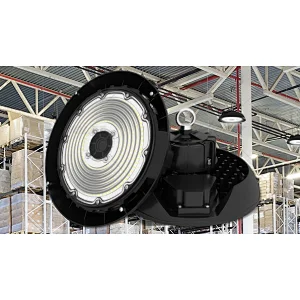

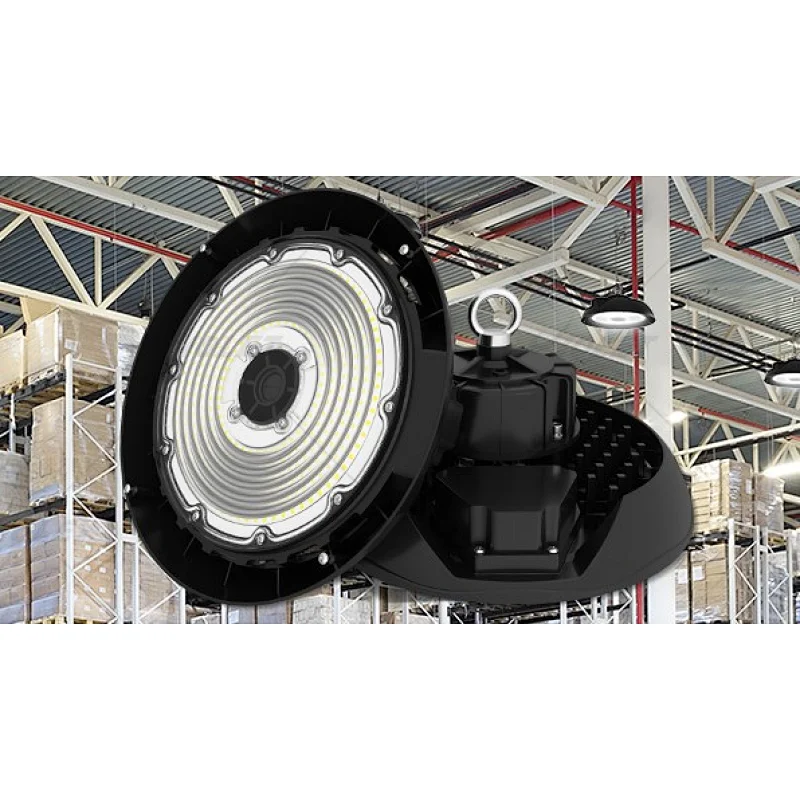

Application: Warehouse
Light Source: LED
Warranty (Year): 5-Year
Power: 100W/150W/200W
Material: Alumimum + PC
Certification: CE/EMC

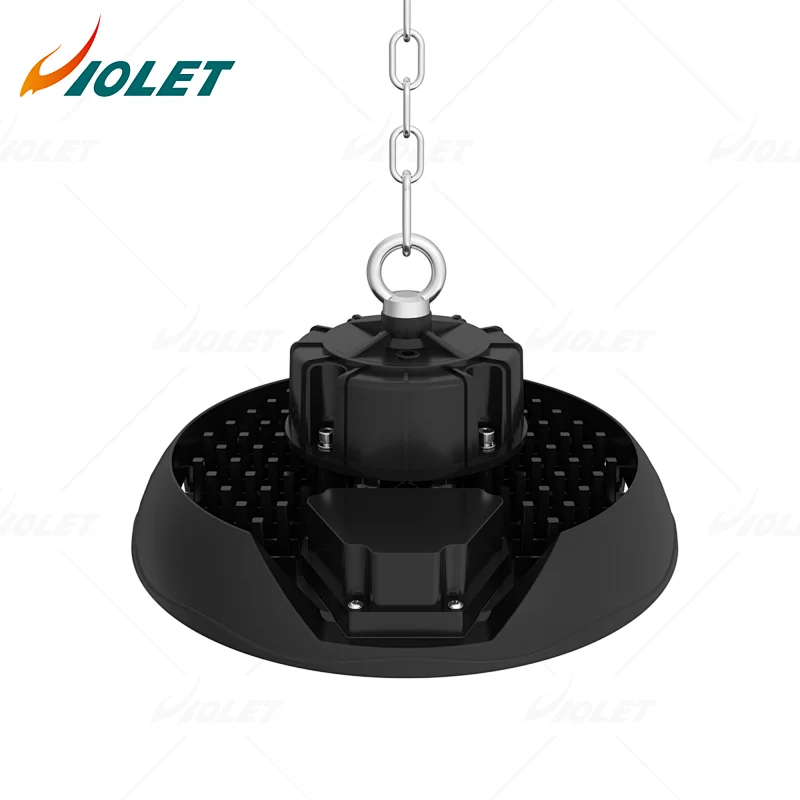

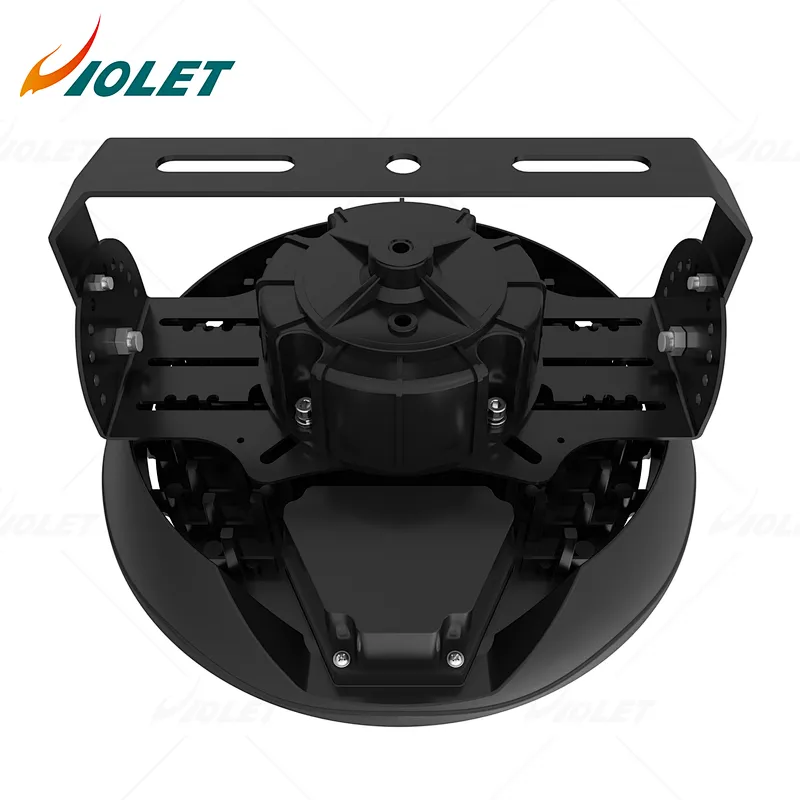

Optional Installation: Cable Mount
Package Detail: Basic package is Brown/White inner box. Brown/white outer box. Colour inner and outer box also can do.
Port: NINGBO

Clips Included: No

ModelpowerInput voltageLuminous efficiencyCCTCRISizeMaterial
CFL001P-D258-130-8XX68W  98W 100W220-240Vac130lm/w3000K-6500KRa≥80D258×116mmDie-casting Aluminum+PC cover
CFL001P-D298-130-8XX150W 200W220-240Vac130lm/w3000K-6500KRa≥80D298×116mmDie-casting Aluminum+PC cover
CFL001P-D258-150-7XX100W220-240Vac150lm/w3000K-6500KRa≥70D258×116mmDie-casting Aluminum+PC cover
CFL001P-D298-150-7XX150W 200W220-240Vac150lm/w3000K-6500KRa≥70D298×116mmDie-casting Aluminum+PC cover
CFL001P-D258-150-8XX100W220-240Vac150lm/w3000K-6500KRa≥80D258×116mmDie-casting Aluminum+PC cover
CFL001P-D298-150-8XX150W 200W220-240Vac150lm/w3000K-6500KRa≥80D298×116mmDie-casting Aluminum+PC cover
CFL001P-D258-170-7XX100W220-240Vac170lm/w3000K-6500KRa≥70D258×116mmDie-casting Aluminum+PC cover
CFL001P-D298-170-7XX150W 200W220-240Vac170lm/w3000K-6500KRa≥70D298×116mmDie-casting Aluminum+PC cover
CFL001PV-D258-150-8XX100W220-240Vac150lm/w3000K-6500KRa≥80D258×116mmDie-casting Aluminum+PC cover
CFL001PV-D298-150-8XX150W 200W220-240Vac150lm/w3000K-6500KRa≥80D298×116mmDie-casting Aluminum+PC cover
CFL001PV-D258-170-7XX100W220-240Vac170lm/w3000K-6500KRa≥70D258×116mmDie-casting Aluminum+PC cover
CFL001PV-D298-170-7XX150W 200W220-240Vac170lm/w3000K-6500KRa≥70D298×116mmDie-casting Aluminum+PC cover

Application scenarios such as: high-roof warehouse/workshop, etc.





150w high bay light wholesale
150w high bay light aluminum body
150w high bay light supplier

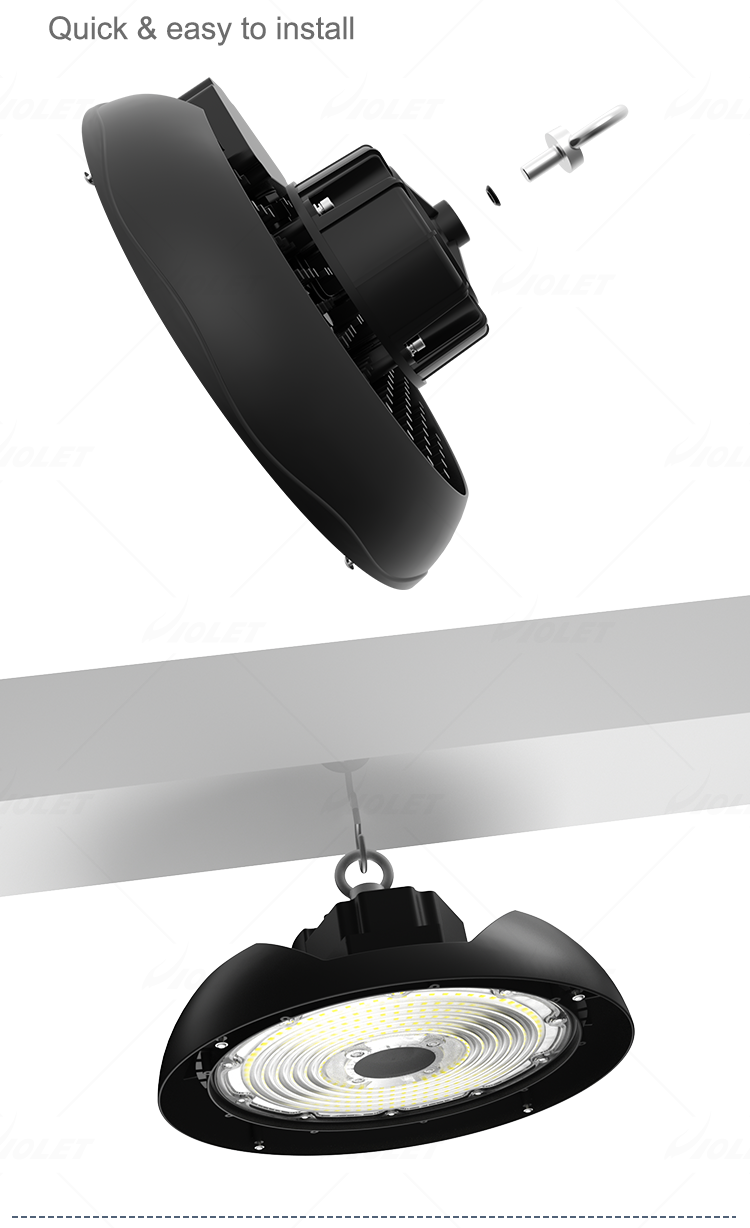

150w high bay light installation method
