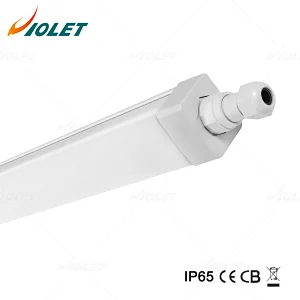

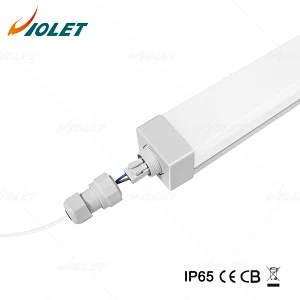

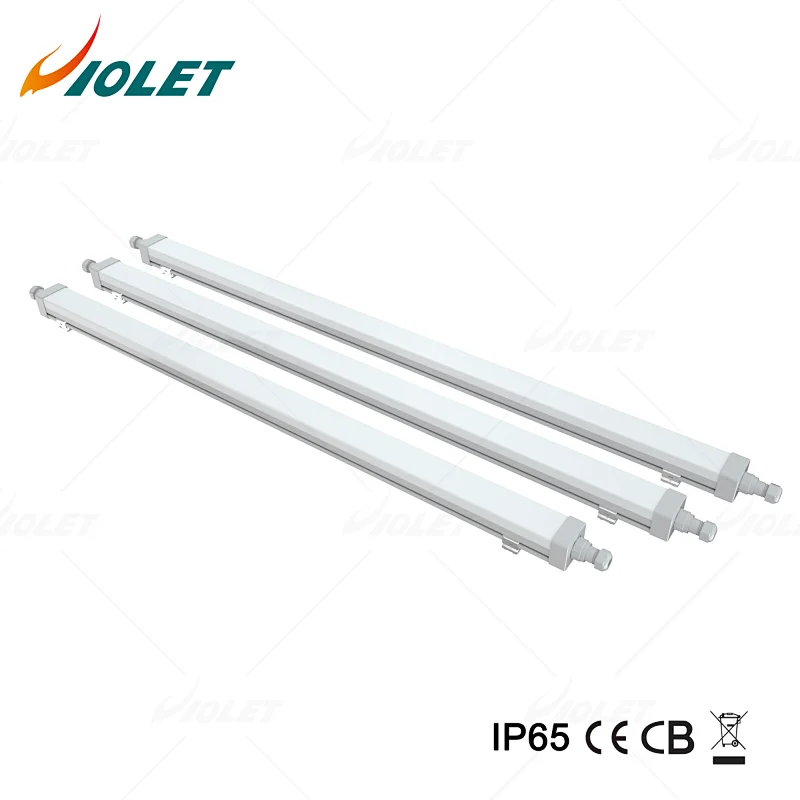

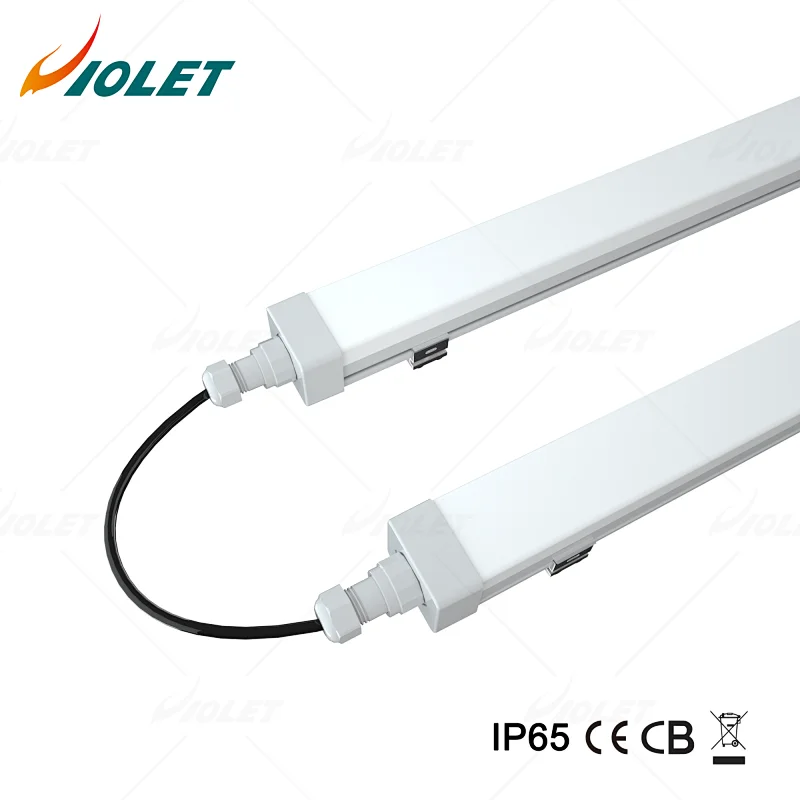

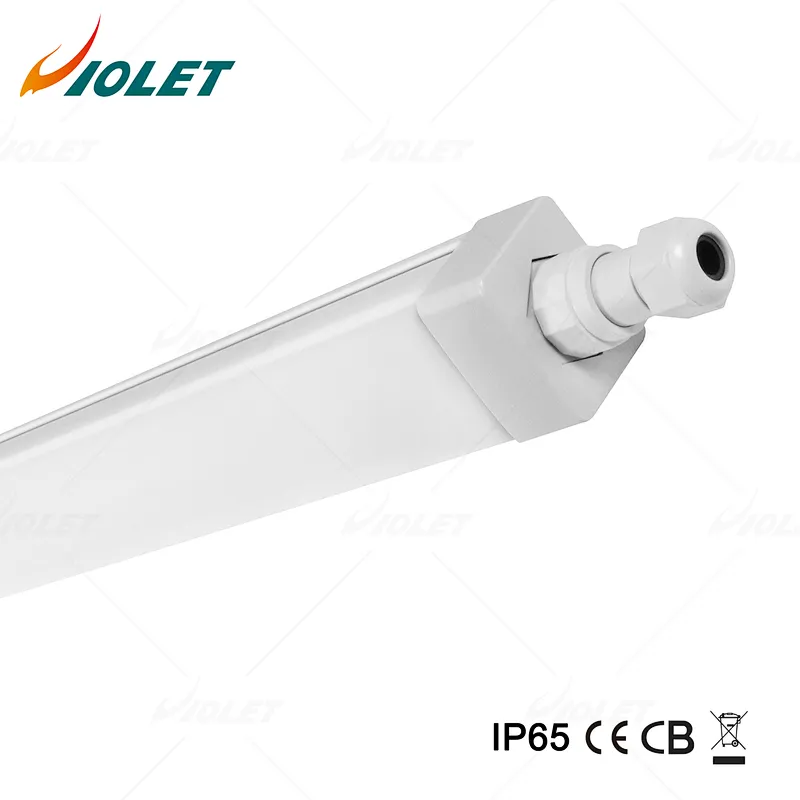

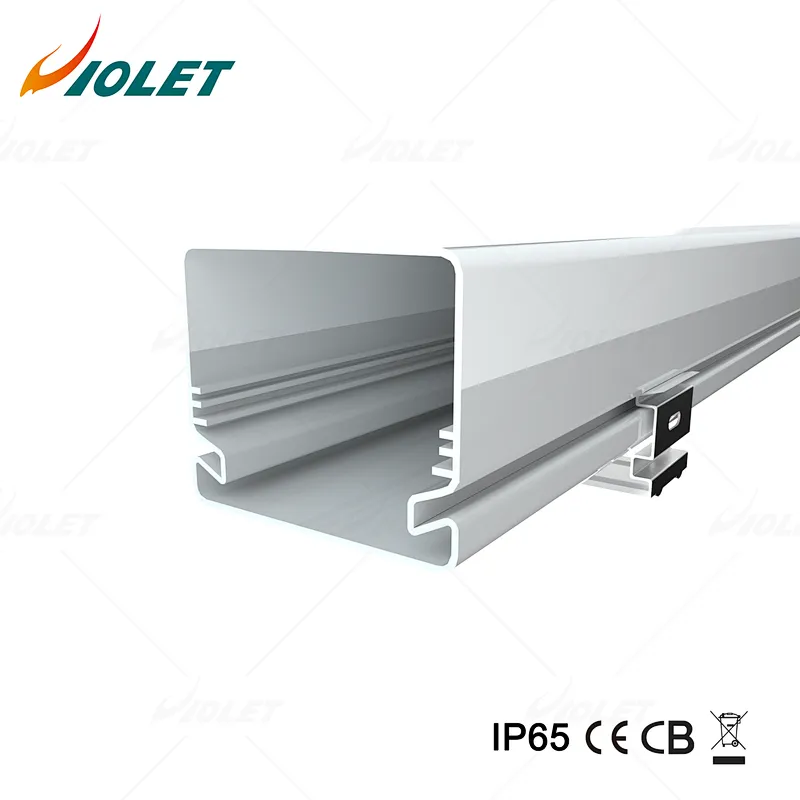

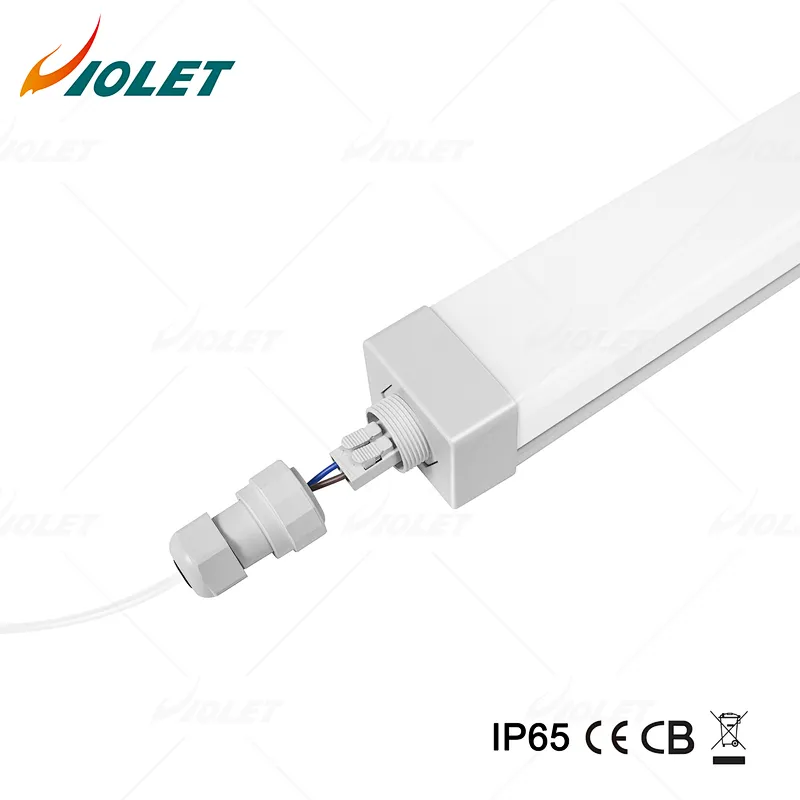

IP65 Tri Proof LED Batten Light for Subway Linkable Design DOB Construct

Categories: Tri Proof LED Light
Model NO.: GI

General Characteristics:

1. 5FT LED batten light, IP65 waterproof, PC housing resistant to UV & impacts, silicon rubber gasket;
2. Opaque PC cover with light diffusing agent, light transmittance up to 83%;

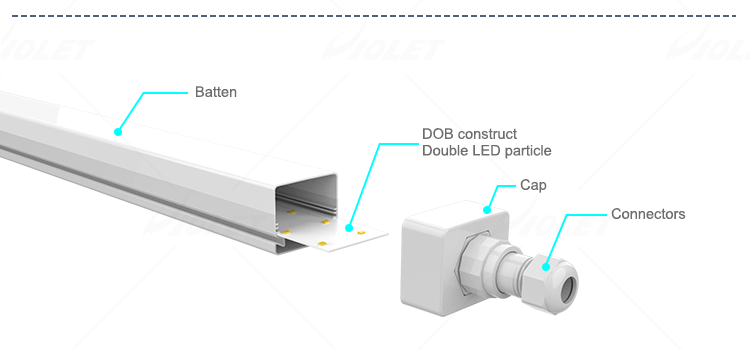

3. DOB construct, double LED particle provides soft and comfortable light, uniform illumination, no glare, dazzle, or spot dot;
4. Reflector: t=0.4MM, cold rolled iron plate, U-shaped high intensity bending, phosphating, spraying and powder coating;

Applications Recommendation:

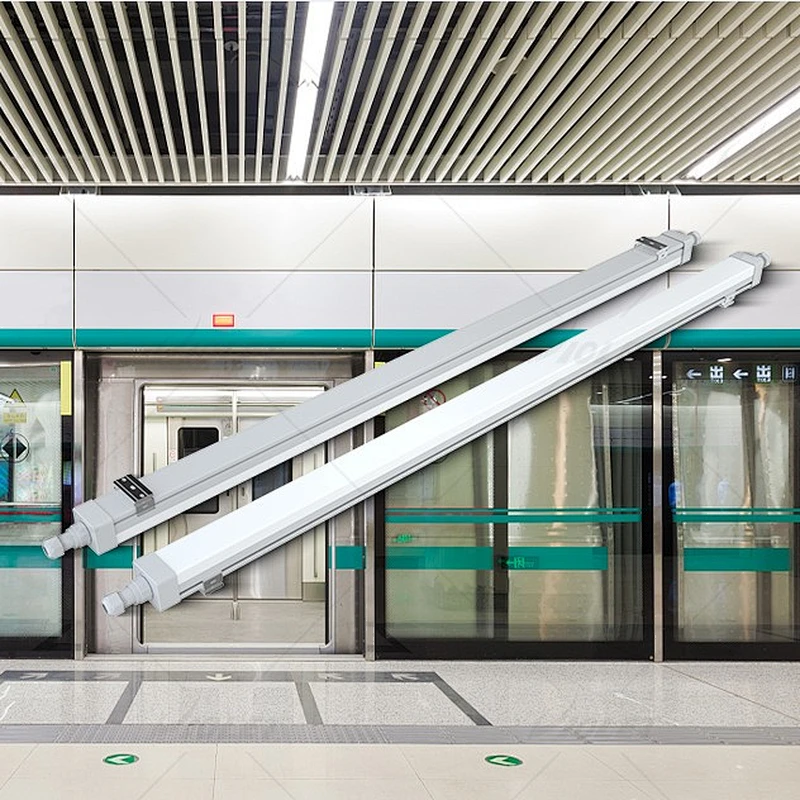

Tri Proof LED Battens are applied in the wet interior, dusty places, and outdoor places, such as Cellars, Sheds, Plant rooms, Warehouses, Open and closed parking areas, Workstations, Corridors, etc. Also suitable for Subway, Office, Meeting Room.

Product Name: IP65 Tri Proof LED Batten Light for Subway Linkable Design DOB Construct
Color Temperature (CCT): 4000K
Input Voltage (V): AC 220V (±10%)
Lamp Luminous Efficiency (LM/W): 130LM/W
Warranty (Year): 3-Year
Color Rendering Index (Ra): 80
Lifespan (Hour): 30000
Type: LED Vapor Tight
Application: Warehouse, Subway, Office, Meeting room
IP Rate: IP65
IK Rate: IK08
Size (FT): 2FT/4FT/5FT
Material: PC Housing
Work Temperature: -20+45
Power: 14.5W/28W/44W
Certification: CE, CB
Package Detail: Using strong boxes for package, Pallet packing is available, in order to reduce the damage during transportation.
Port: NINGBO

Clips Included: No


TypePower
(w)
Luminous
(lm)
CCT
(K)
Dimensions
(L×W×H)(mm)
Q'ty/ctn
(pcs)
Packing size
(mm)
VE106GI14.518904000K645*53*4620729*242*269
VE112GI2836404000K1214*53*46151289*185*269
VE115GI4457204000K1494*53*46151569*185*269
VE106GI-TW114.518904000K707*53*4620782*242*269
VE112GI-TW12836404000K1267*53*46151342*185*269
VE115GI-TW14457204000K1547*53*46151622*185*269
