"IP grade" refers to the IP (Ingress Protection) rating, also known as the IP code or IP classification. The IP grade is a standardized rating system that classifies the level of protection provided by an enclosure or housing against the intrusion of solid objects and water.
The IP rating is typically represented by the letters "IP" followed by two numbers. The first number indicates the level of protection against solid objects, while the second number represents the level of protection against water. Each number has a specific range of values and corresponding meanings.
The first number in an IP (Ingress Protection) grade represents the level of protection against solid objects, such as dust and particles. It indicates the degree to which the enclosure or housing prevents the ingress of solid foreign bodies.
Here is a breakdown of the first number in the IP grade and its meanings:
0: No protection against solid objects. The enclosure provides no defense against the entry of any size of solid particles.
1: Protection against solid objects larger than 50 mm. The enclosure prevents the entry of any large body parts or objects with a diameter greater than 50 mm.
2: Protection against solid objects larger than 12.5 mm. The enclosure safeguards against the entry of fingers or similar objects with a diameter greater than 12.5 mm.
3: Protection against solid objects larger than 2.5 mm. The enclosure blocks the entry of tools, thick wires, or objects with a diameter greater than 2.5 mm.
4: Protection against solid objects larger than 1 mm. The enclosure prevents the ingress of most wires, screws, or objects with a diameter greater than 1 mm.
5: Dust protected. The enclosure limits the entry of dust to an extent that will not interfere with the satisfactory operation of the equipment.
6: Dust tight. The enclosure provides complete protection against the entry of dust and ensures the equipment operates unaffected even in dusty environments.
It's important to note that the first number in the IP grade solely addresses the level of protection against solid objects and does not reflect the enclosure's resistance to water or other liquids.
The second number in an IP (Ingress Protection) grade represents the level of protection against the ingress of water or other liquids. It indicates the degree to which the enclosure or housing is resistant to the penetration of moisture.
Here is a breakdown of the second number in the IP grade and its meanings:
0: No protection against water. The enclosure offers no defense against water or moisture.
1: Protection against vertically falling water drops. The enclosure can withstand vertically falling water drops that have no harmful effect.
2: Protection against vertically falling water drops when tilted up to 15 degrees. The enclosure can handle vertically falling water drops at an angle of up to 15 degrees without causing harm.
3: Protection against spraying water at an angle of up to 60 degrees. The enclosure is resistant to water sprayed at an angle of up to 60 degrees from vertical without causing detrimental effects.
4: Protection against splashing water from any direction. The enclosure can withstand splashing water from any direction without causing harm.
5: Protection against water jets from any direction. The enclosure can resist water jets from any direction without causing detrimental effects.
6: Protection against powerful water jets or heavy seas. The enclosure can withstand powerful water jets or heavy seas without harm.
7: Protection against temporary immersion in water. The enclosure can be temporarily submerged in water up to a specified depth and duration without suffering damage.
8: Protection against continuous submersion in water. The enclosure can be continuously submerged in water beyond the specified depth and duration without detrimental effects.
9: Protection against high-pressure and high-temperature water jets. The enclosure is designed to resist high-pressure and high-temperature water jets, often used for industrial cleaning purposes.
It's important to note that the second number in the IP grade specifically indicates the level of protection against water or moisture and does not reflect the enclosure's resistance to solid objects or other factors such as dust ingress or impact resistance.
The IP (Ingress Protection) grade is used in various industries and applications where the protection of equipment against solids and liquids is important. Here are some areas where the IP grade is commonly utilized:
- Electronics and Electrical Equipment: The IP rating is relevant in the design and selection of enclosures for electronic devices, such as smartphones, tablets, computers, and control panels. It ensures that the equipment is adequately protected against dust, water, and other environmental factors.
- Industrial and Manufacturing Environments: IP ratings are essential in industrial settings where machinery, control systems, and electrical equipment are exposed to harsh conditions. It helps determine the suitability of equipment for use in environments with high levels of dust, moisture, or potential water jets.
- Outdoor and Weather-Exposed Applications: The IP grade is particularly relevant for outdoor equipment, such as outdoor lighting fixtures, surveillance cameras, and signage. It ensures that the equipment can withstand exposure to varying weather conditions, including rain, dust storms, and extreme temperatures.
- Automotive and Transportation: In the automotive industry, the IP rating is used to assess the durability and protection of lighting systems, electrical connectors, and other components against water and dust ingress. It ensures that these components can withstand challenging conditions on the road.
- Construction and Infrastructure: IP ratings are considered when selecting electrical enclosures, connectors, and other equipment used in construction sites, tunnels, bridges, and other infrastructure projects. It ensures that the equipment can endure exposure to dust, water, and potential mechanical stress.
- Medical and Healthcare: In medical and healthcare settings, IP ratings are relevant for equipment that may come into contact with liquids during cleaning or sterilization processes. It ensures the appropriate protection against water ingress and potential damage.

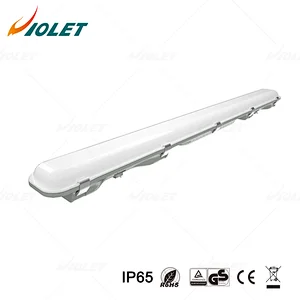

The IP grade is also a important specification for led lights.
- Safety and Durability: LED lights with a higher IP rating are designed to withstand harsh environments, ensuring the safety and durability of the fixture. This is particularly important for outdoor or industrial applications where the lights may be exposed to dust, moisture, or other solid and liquid particles.
- Performance in Challenging Environments: The IP rating helps determine whether LED lights can operate reliably and maintain their performance in specific environments. For example, lights with a high IP rating are suitable for use in wet locations, such as outdoor areas, bathrooms, or swimming pools, where protection against water ingress is crucial.
- Longevity and Maintenance: LED lights with a higher IP rating tend to have better protection against dust and moisture, reducing the likelihood of internal damage or corrosion. This can contribute to the longevity of the fixture and minimize the need for frequent maintenance or replacement.
- Compliance with Regulations: In certain industries and applications, there may be regulations or standards in place that require a specific IP rating for LED lights. Meeting these requirements ensures compliance with safety guidelines and industry standards.
- Customer Confidence: The IP grade serves as a valuable reference point for customers when selecting LED lights. It provides clear information about the light fixture's ability to withstand environmental conditions, instilling confidence in the product's reliability and suitability for the intended application.
By considering the IP grade when selecting LED lights, individuals and businesses can ensure that the fixtures are appropriately protected against solid objects and water, enabling them to perform optimally and maintain their integrity over time.
