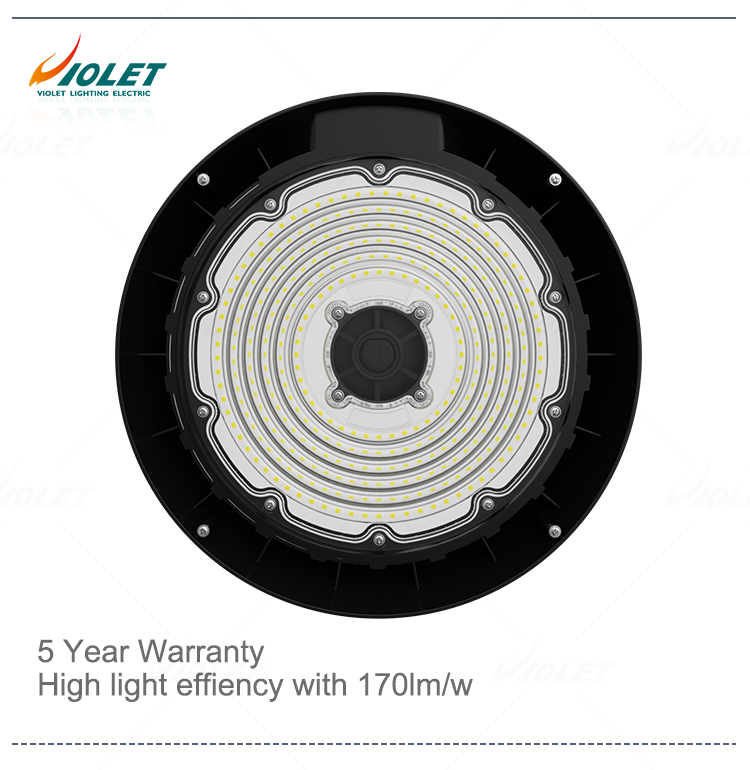

1. Reach grade A for the new ERP energy efficiency level. And the maximum luminous efficiency up 170LM/W. Surpass most similar products on the market;

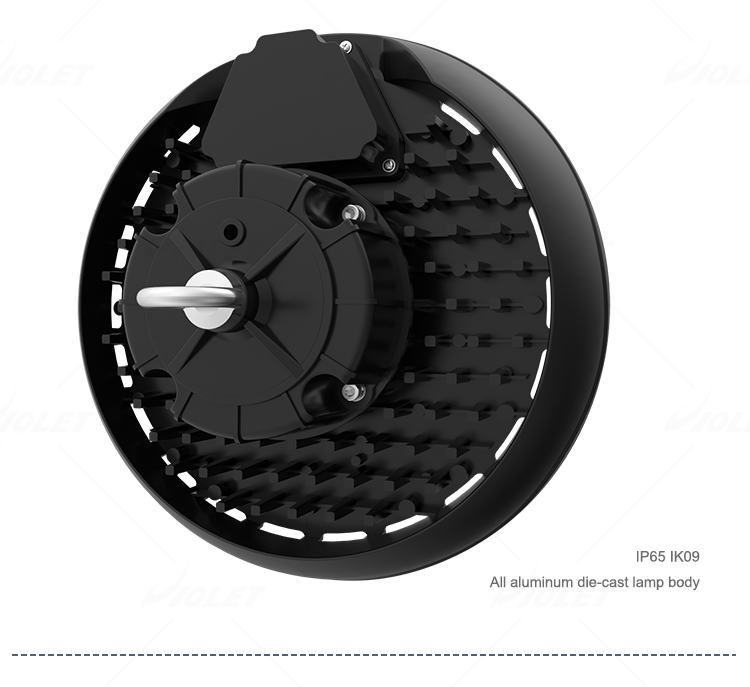

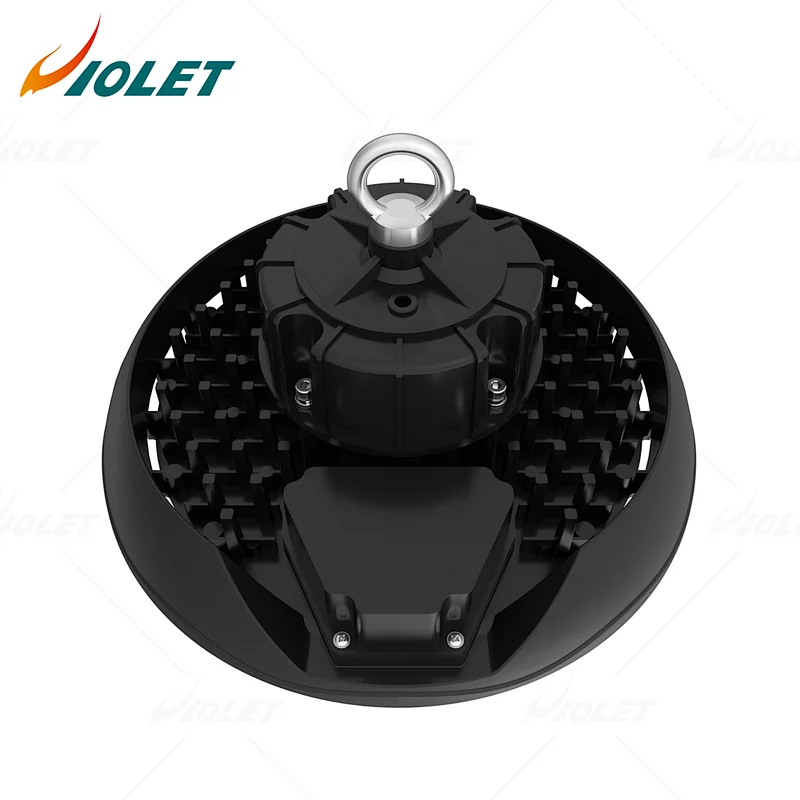

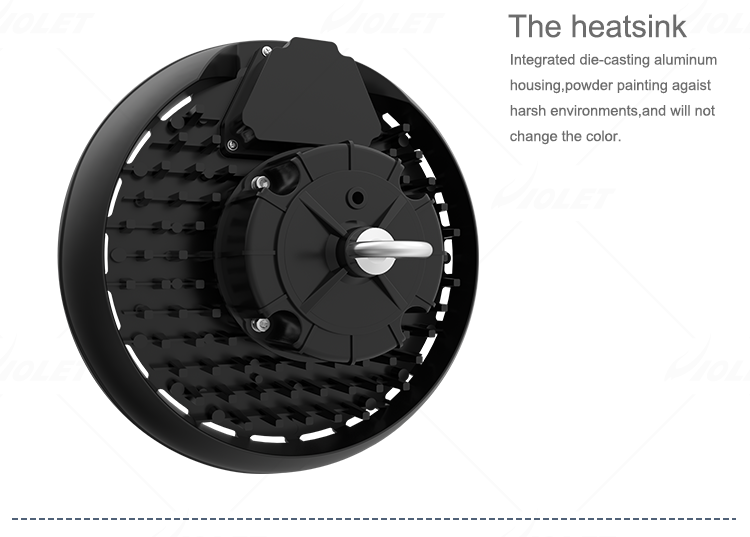

2. All aluminum die-cast lamp body; Not a cheap fin-type lamp body on the market; IK09;

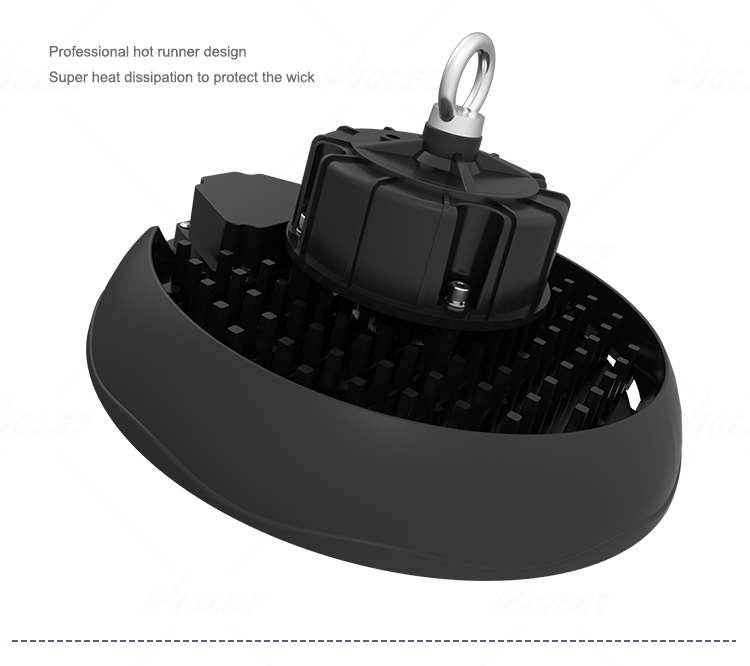

3. Super heat dissipation to protect the wick; Bring higher working stability and improve service life;

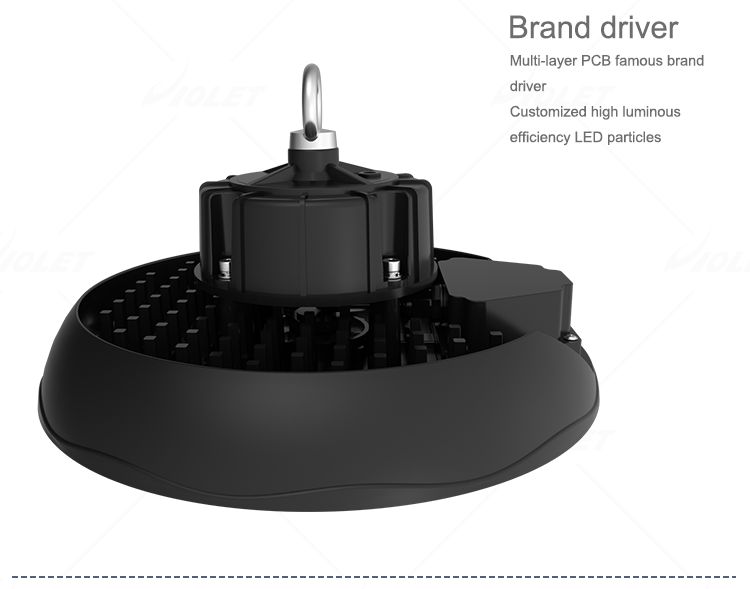

4. Multi-layer PCB brilliant driver; Customized high luminous efficiency LED particles.
Applications Recommendation:
Wide application prospects. Widely used in warehouses, tunnels, manufacturing, mining, petroleum, stadiums, supermarket, etc.

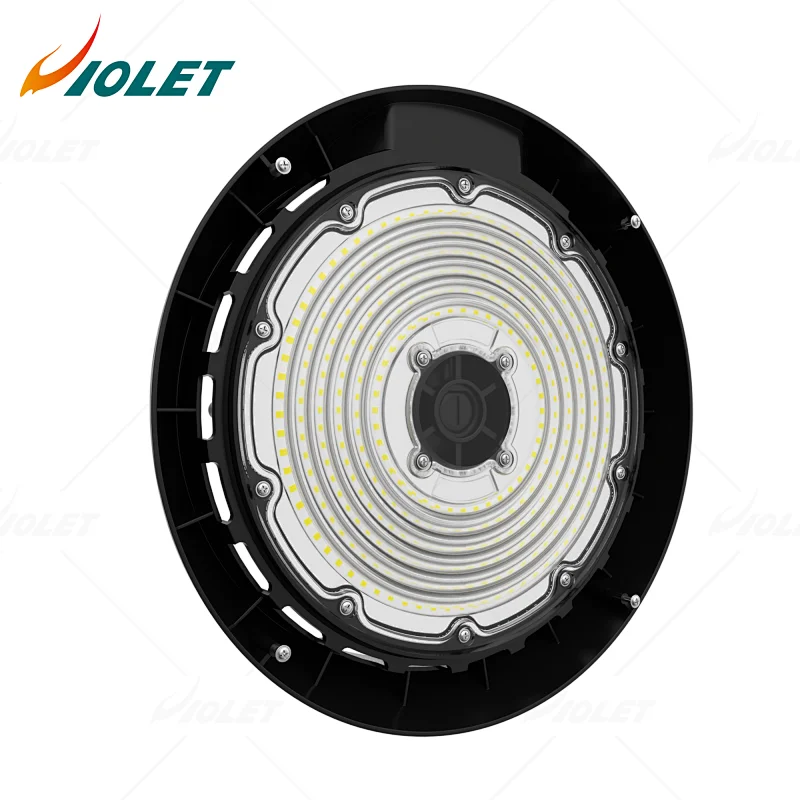

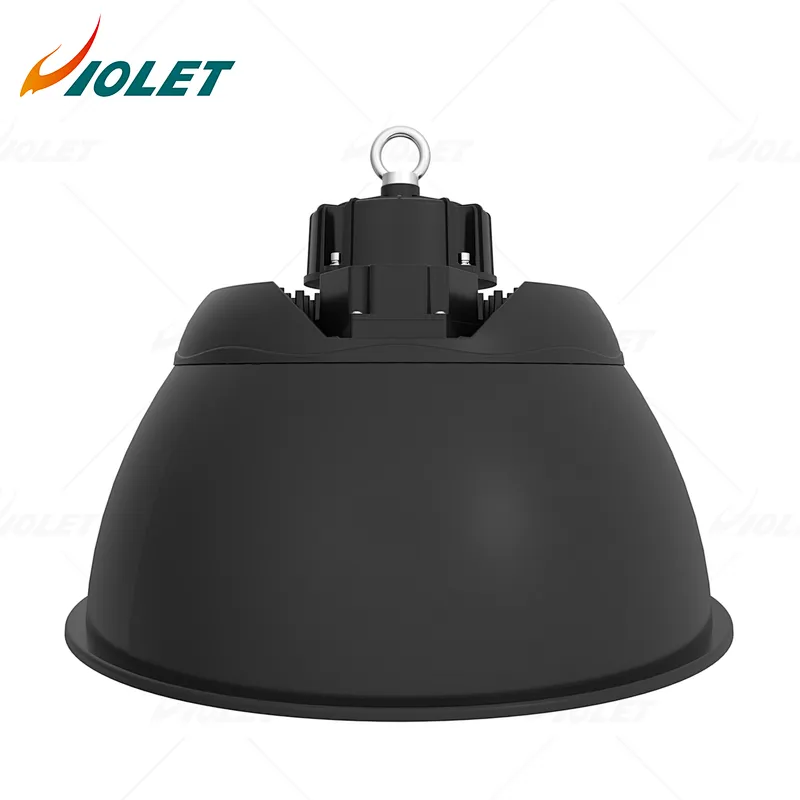

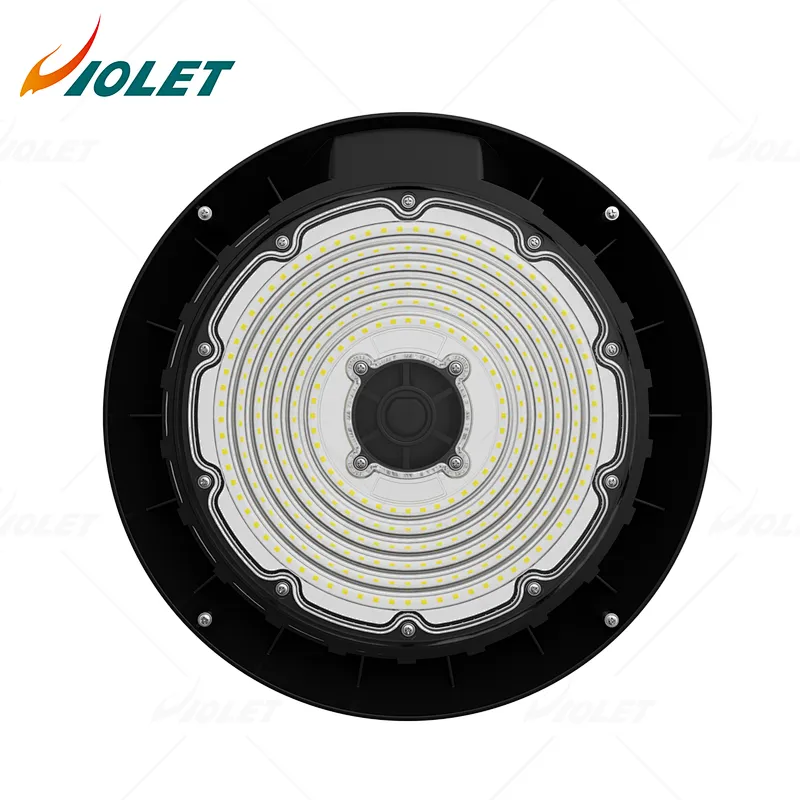

Product Name: New Warehouse Industrial IP65 Waterproof Linear 150W 170W UFO LED High Bay Light
Color Temperature (CCT): 3000K-6500K
Lamp Luminous Efficiency (LM/W): 130LM/W-170LM/W
Color Rendering Index (Ra): Ra≥70&Ra≥80
Lifespan (Hour): 50000
Working Time (Hour): 50000
Product Weight (KG): 2.6
Input Voltage (V): AC 220V (±10%)
Lamp Luminous Flux (LM): 15000
Working Temperature (℃): -20-45
Lamp Body Material: Aluminum Alloy
IP Rate: IP65
Application: Warehouse
Light Source: LED
Warranty (Year): 5-Year
Power: 100W/150W/200W
Material: Alumimum + PC
Certification: CE/EMC

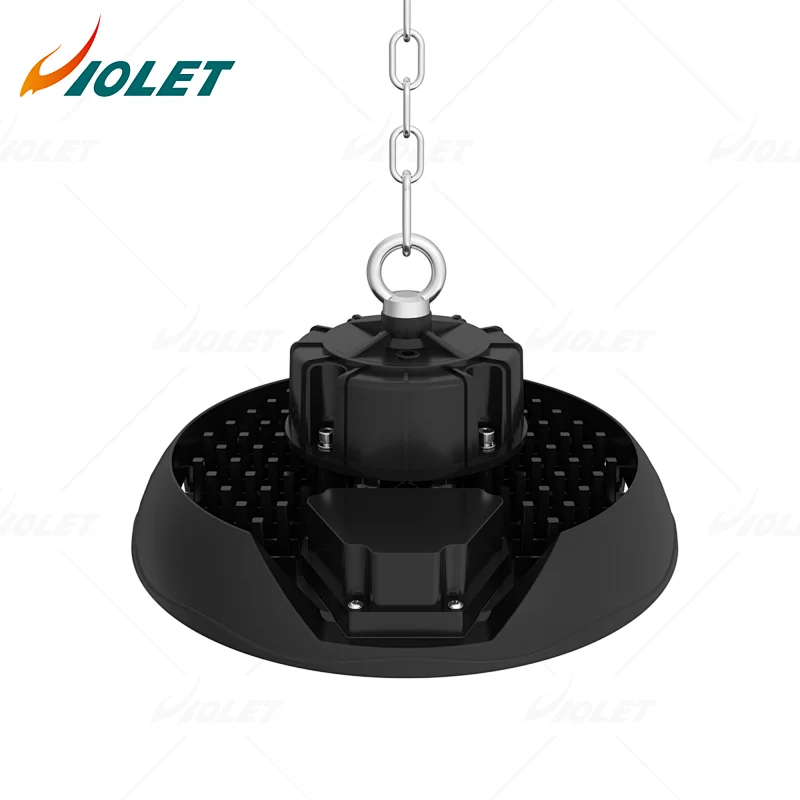

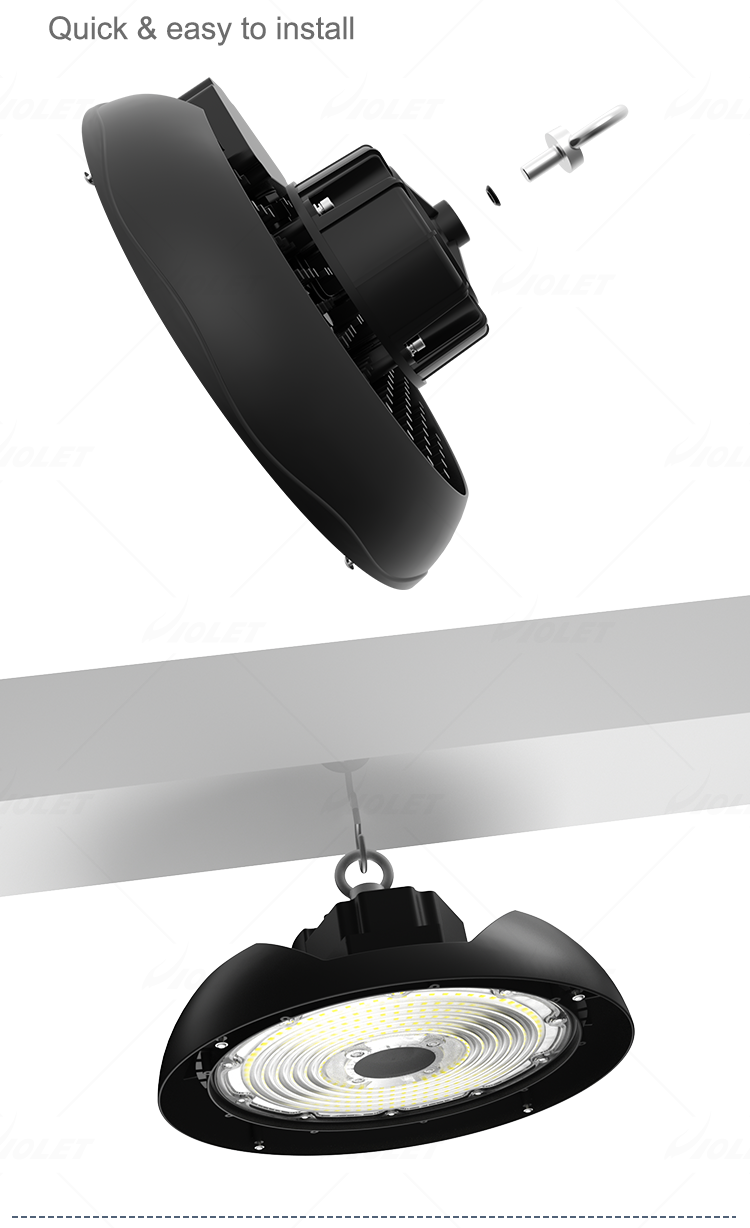

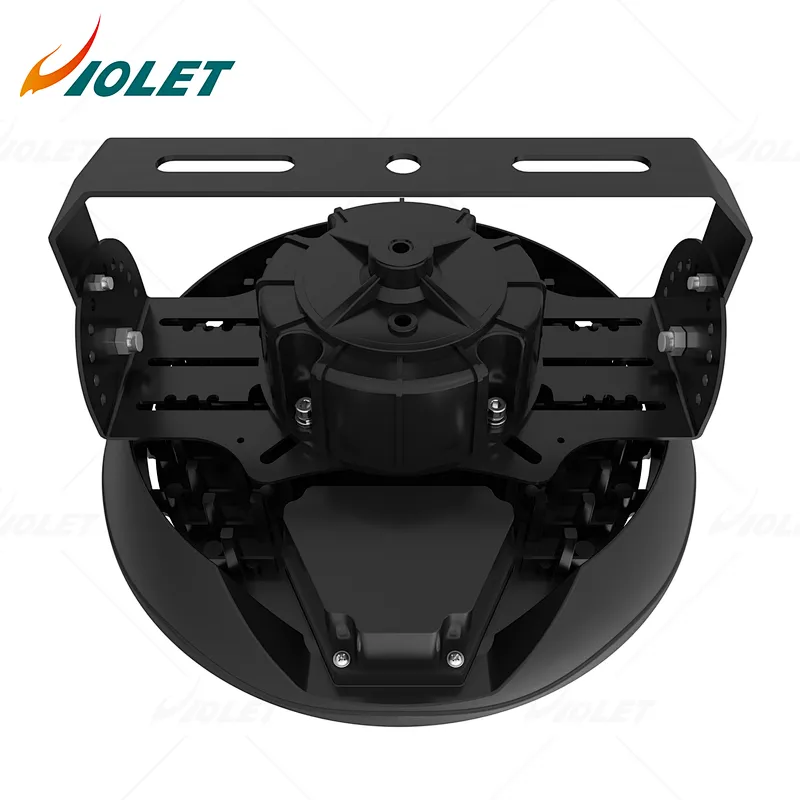

Optional Installation: Cable Mount
Package Detail: Basic package is Brown/White inner box. Brown/white outer box. Colour inner and outer box also can do.
Port: NINGBO
Clips Included: No
| Model | power | Input voltage | Luminous efficiency | CCT | CRI | Size | Material |
| CFL001P-D258-130-8XX | 68W 98W 100W | 220-240Vac | 130lm/w | 3000K-6500K | Ra≥80 | D258×116mm | Die-casting Aluminum+PC cover |
| CFL001P-D298-130-8XX | 150W 200W | 220-240Vac | 130lm/w | 3000K-6500K | Ra≥80 | D298×116mm | Die-casting Aluminum+PC cover |
| CFL001P-D258-150-7XX | 100W | 220-240Vac | 150lm/w | 3000K-6500K | Ra≥70 | D258×116mm | Die-casting Aluminum+PC cover |
| CFL001P-D298-150-7XX | 150W 200W | 220-240Vac | 150lm/w | 3000K-6500K | Ra≥70 | D298×116mm | Die-casting Aluminum+PC cover |
| CFL001P-D258-150-8XX | 100W | 220-240Vac | 150lm/w | 3000K-6500K | Ra≥80 | D258×116mm | Die-casting Aluminum+PC cover |
| CFL001P-D298-150-8XX | 150W 200W | 220-240Vac | 150lm/w | 3000K-6500K | Ra≥80 | D298×116mm | Die-casting Aluminum+PC cover |
| CFL001P-D258-170-7XX | 100W | 220-240Vac | 170lm/w | 3000K-6500K | Ra≥70 | D258×116mm | Die-casting Aluminum+PC cover |
| CFL001P-D298-170-7XX | 150W 200W | 220-240Vac | 170lm/w | 3000K-6500K | Ra≥70 | D298×116mm | Die-casting Aluminum+PC cover |
| CFL001PV-D258-150-8XX | 100W | 220-240Vac | 150lm/w | 3000K-6500K | Ra≥80 | D258×116mm | Die-casting Aluminum+PC cover |
| CFL001PV-D298-150-8XX | 150W 200W | 220-240Vac | 150lm/w | 3000K-6500K | Ra≥80 | D298×116mm | Die-casting Aluminum+PC cover |
| CFL001PV-D258-170-7XX | 100W | 220-240Vac | 170lm/w | 3000K-6500K | Ra≥70 | D258×116mm | Die-casting Aluminum+PC cover |
| CFL001PV-D298-170-7XX | 150W 200W | 220-240Vac | 170lm/w | 3000K-6500K | Ra≥70 | D298×116mm | Die-casting Aluminum+PC cover |

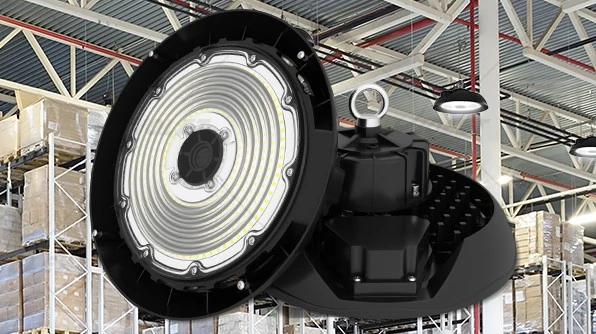

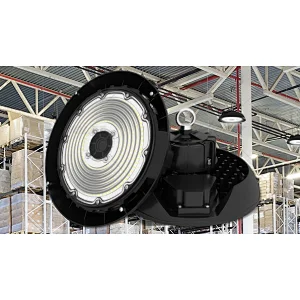

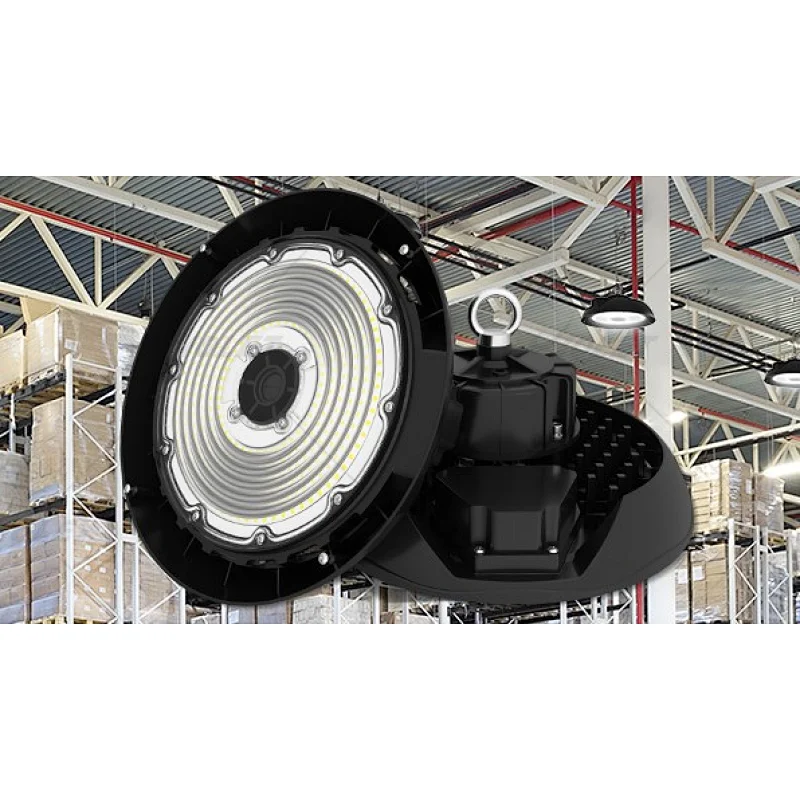

Application scenarios such as: high-roof warehouse/workshop, etc.
