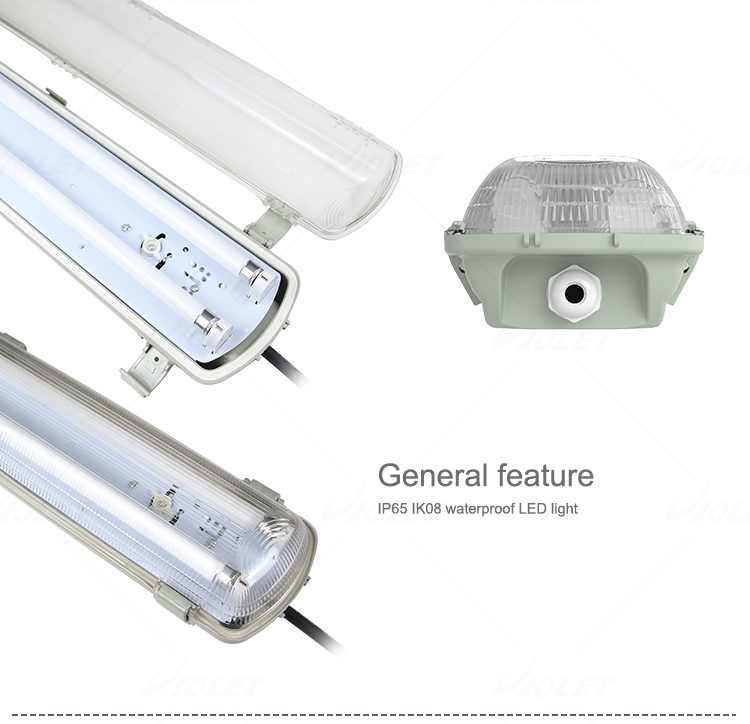

General Characteristics:
1. IP65 protection class and can be used in waterproof, dustproof, and explosion-proof needed occasions, safe and easy to replace;
2. Quality LED chips, lifespan > 30,000 hours, mild light, no flicker, no glare, and no noise;

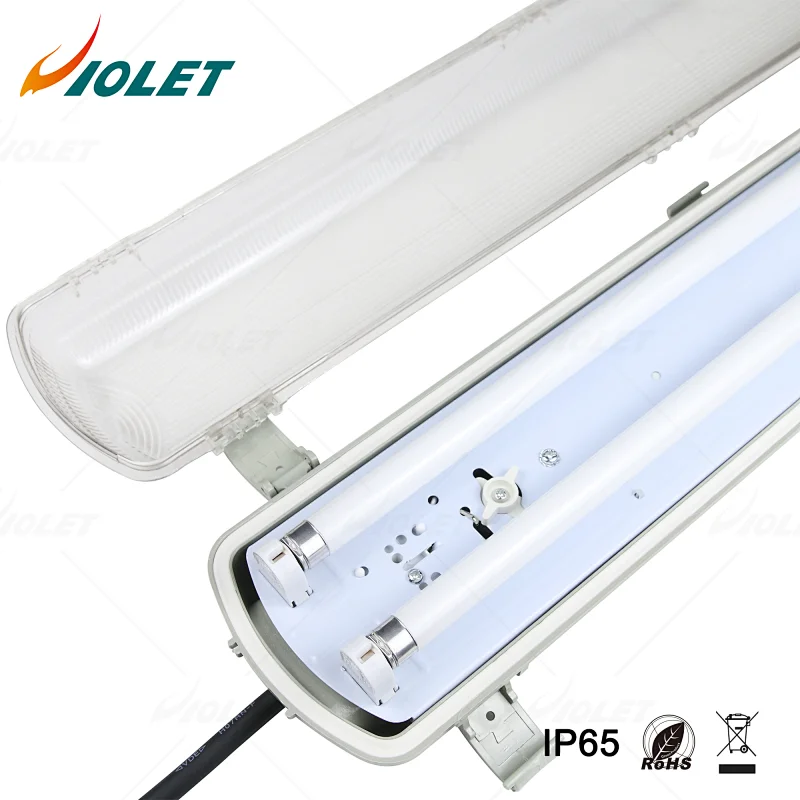

3. An IP65 batten LED tube light, PC housing resistant to UV & impacts, silicon rubber gasket; Opaque PC cover with light diffusing agent, light transmittance up to 83 %;

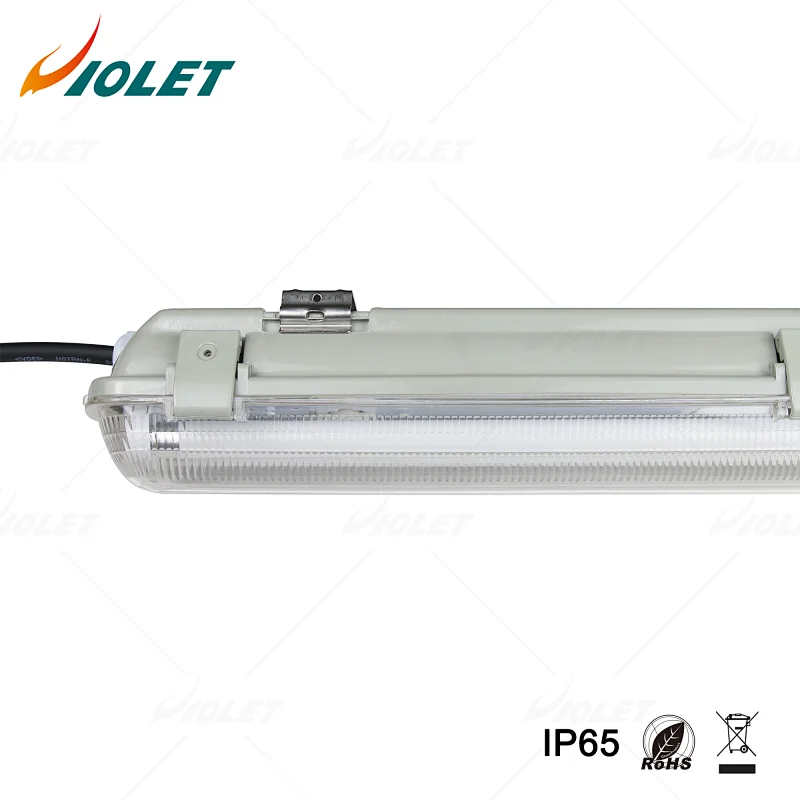

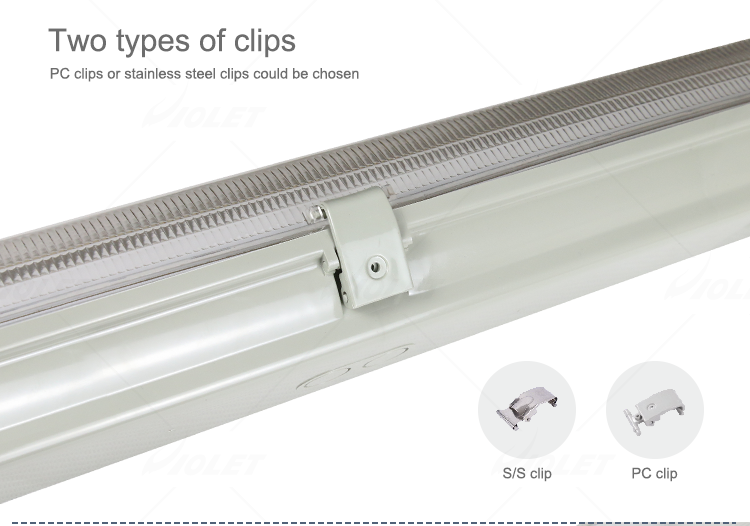

4. PC clips or stainless steel clips for you to choose from;
5. Reflector: t=0.4mm cold rolled iron plate, U-shaped high intensity bending, phosphating, spraying, and powder coating;
Applications Recommendation:

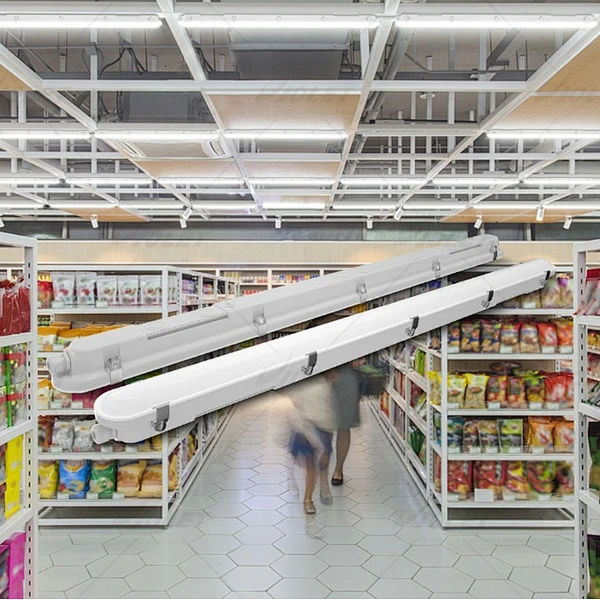

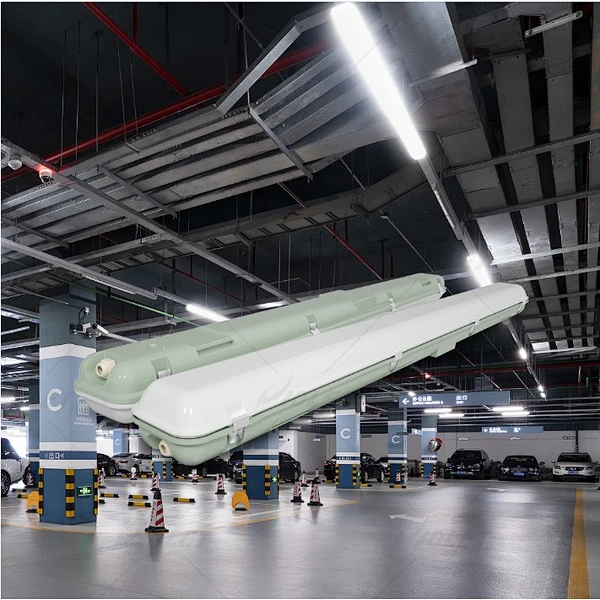

IP65 LED tube light can be applied in the wet interior, dusty places, and outdoor places, such as Cellars, Sheds, Plant rooms, Warehouses, Open and closed parking areas, Workstations, Corridors, etc.
Color Temperature (CCT): 3000/4000/6500K
Input Voltage (V): AC 220V (±10%)
Warranty (Year): 3-Year
Color Rendering Index (Ra): 80
Lifespan (Hour): 30000
Application: Warehouse
IP Rate: IP65
IK Rate: IK08
Installation: Ceiling/surface mounted
Length: 600/1200/1500MM
Material: PC Housing + PC Transparent Cover
Tube Number: 1/2
Package Detail: Using strong boxes for package, Pallet packing is available, in order to reduce the damage during transportation.
Port: NINGBO
Clips Included: Yes
Type | Lamps | IP Rating | Clips Qty. | Dimensions (L×W×H)(mm) | Q'ty/ctn (pcs) | Packing size (mm) |
V5114C | 1x14W T5 G5 | IP65 | 6pcs | 618x81x74 | 12 | 705x340x190 |
V5128C | 1x28W T5 G5 | IP65 | 10pcs | 1215x81x74 | 12 | 1245x340x190 |
V5135C | 1x35W T5 G5 | IP65 | 12pcs | 1515x81x74 | 12 | 1545x340x190 |
V5149C | 1x49W T5 G5 | IP65 | 12pcs | 1515x81x74 | 12 | 1545x340x190 |
V5154C | 1x54W T5 G5 | IP65 | 10pcs | 1215x81x74 | 12 | 1245x340x190 |
V5214C | 2x14W T5 G5 | IP65 | 6pcs | 618x116x74 | 8 | 645x245x245 |
V5228C | 2x28W T5 G5 | IP65 | 10pcs | 1215x116x74 | 8 | 1245x245x245 |
V5235C | 2x35W T5 G5 | IP65 | 12pcs | 1515x116x74 | 8 | 1545x245x245 |
V5249C | 2x49W T5 G5 | IP65 | 12pcs | 1515x116x74 | 8 | 1545x245x245 |
V5254C | 2x54W T5 G5 | IP65 | 10pcs | 1215x116x74 | 8 | 1245x245x245 |
