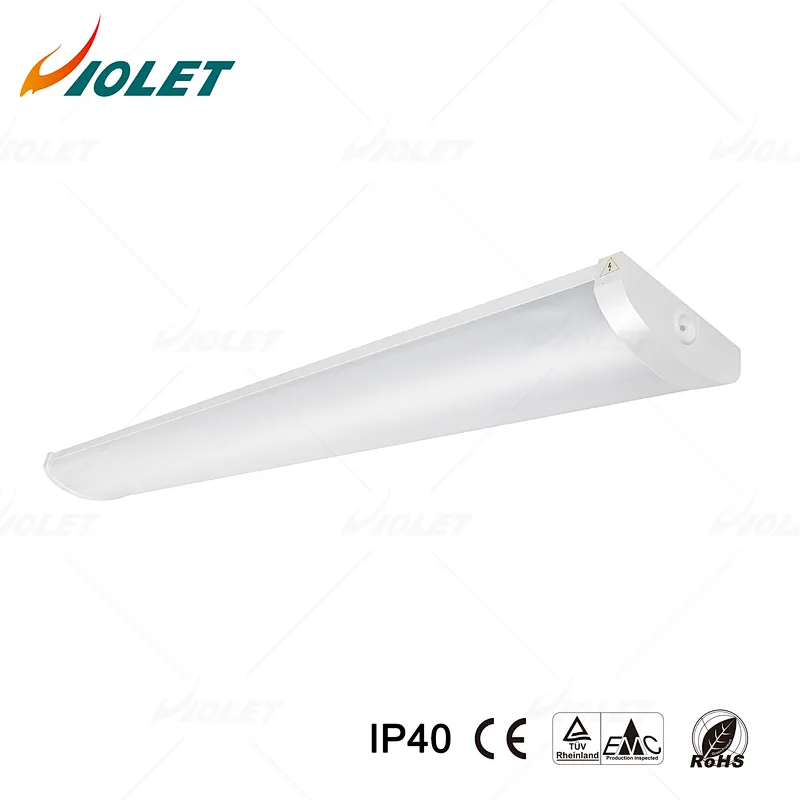

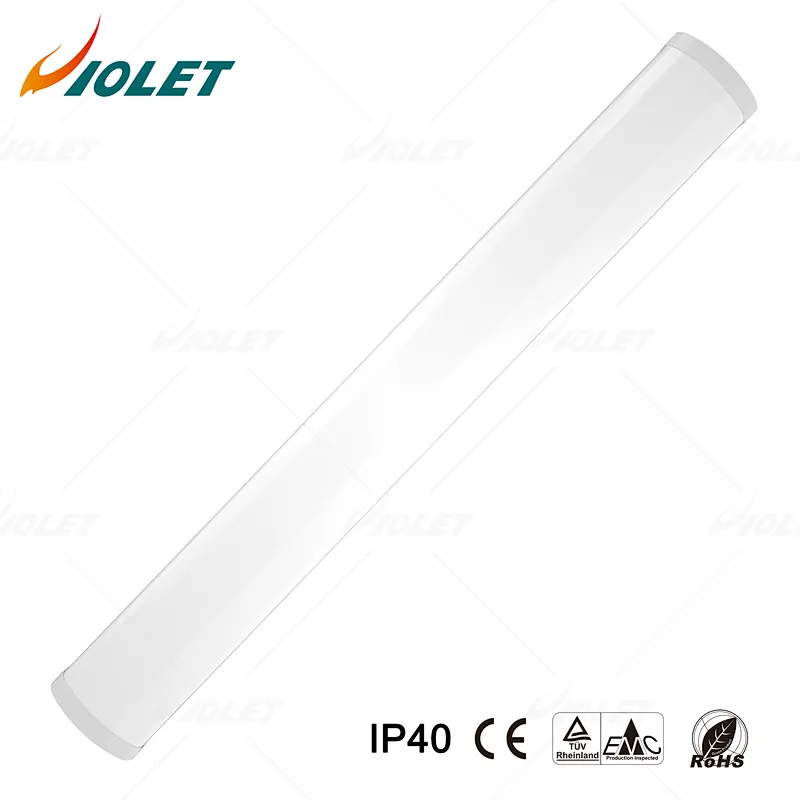

General Characteristics:

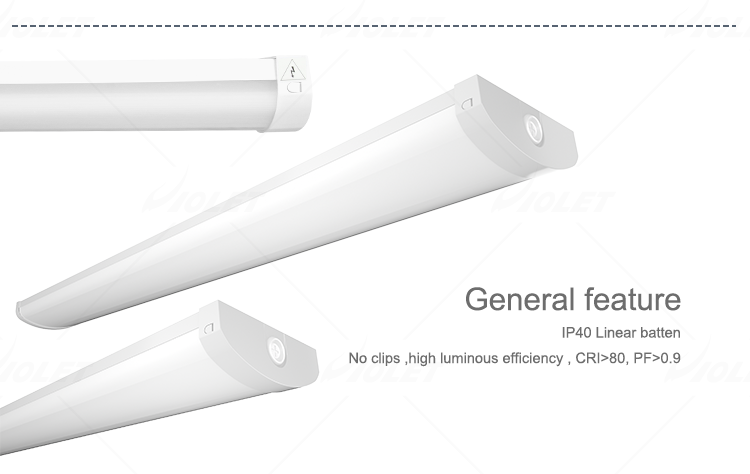

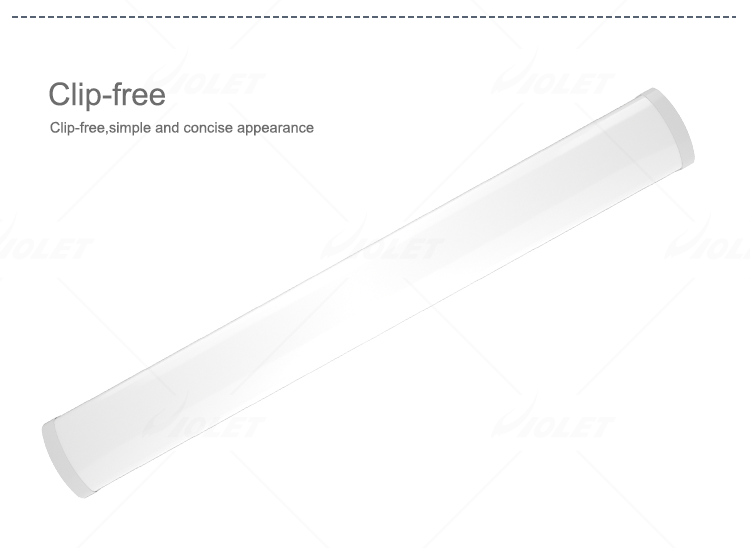

1. IP40 linear batten, no clips, high lumen efficiency, CRI＞80， PF＞0.9l;
2. Quality LED chips, lifespan > 50,000 hours, mild light, no flicker, no glare, and no noise;

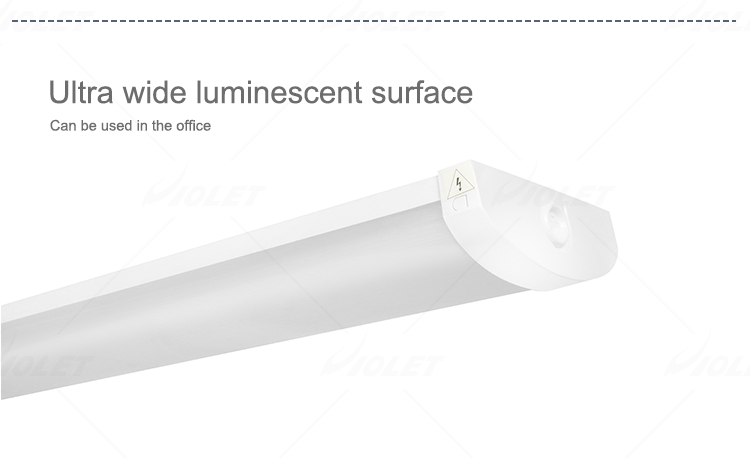

3. Opaque PC cover with light diffusing agent, light transmittance up to 83%;
4. Linear batten light provides sufficient lighting for your Dining Room and Kitchen Island, a great choice for reading, working, and dining environment;
5. Reflector: t=0.4mm cold rolled iron plate, U-shaped high intensity bending, phosphating, spraying and powder coating;
Applications Recommendation:

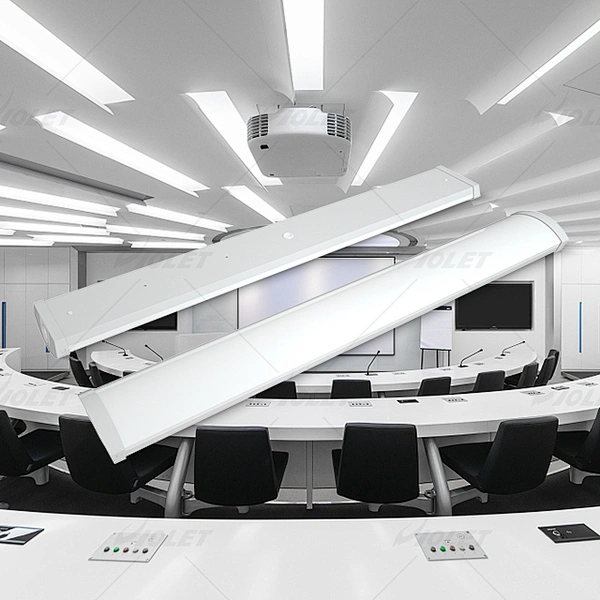

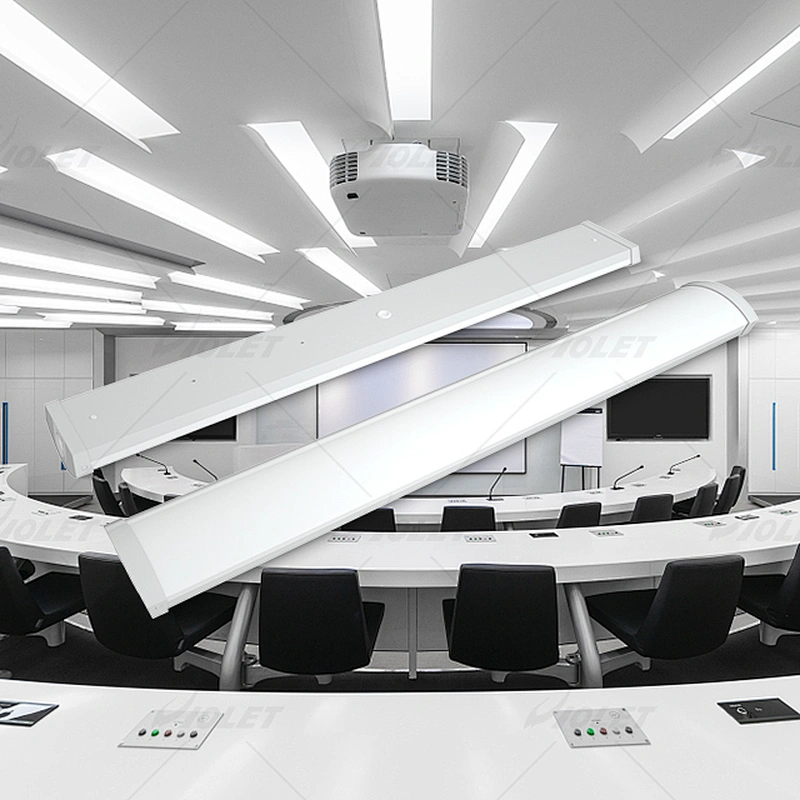

The light can be applied in the indoor places, such as meeting room, office, dining room, and kitchen, etc.
Color Temperature (CCT): 3000K/4000K/6500K

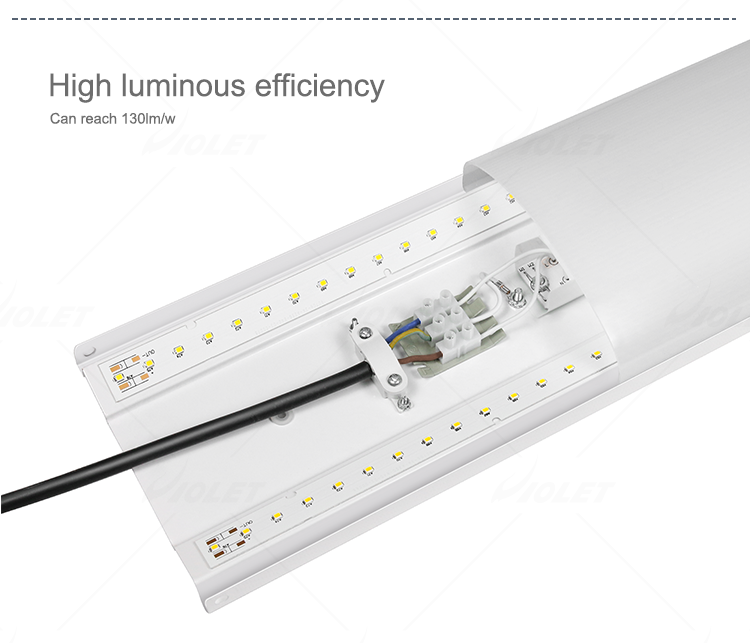

Lamp Luminous Efficiency (LM/W): 130LM/W
Color Rendering Index (Ra): 80
Lifespan (Hour): 50000
Light Source: LED
IP Rate: IP40
Warranty (Year): 3-Year
Input Voltage (V): AC 220-240V
Lamp Luminous Flux (LM): 2600LM~7450LM
Length: 600MM/1200MM/1500MM
Material: Cold rolled steel + PC
Power: 20W/35W/45W/35W/58W
Power Factor: PF>0.9
Beam Angle: 120 Degree
Installation: Ceiling and hanging
Certification: EMC, LVD
Package Detail: Basic package is Brown/White inner box. Brown/white outer box. Colour inner and outer box also can do.
Port: NINGBO
Clips Included: No
| Type | Power (w) | Luminous (lm) | CCT (K) | Dimensions (L×W×H)(mm) | Q'ty/ctn (pcs) | Packing size (mm) |
| VE106DL-S | 20W | 2600 | 3000K/4000K/6500K | 590*142*53 | 6 | 645*350*165 |
| VE112DL-S | 35W/45W | 4500/5850 | 3000K/4000K/6500K | 1150*142*53 | 6 | 1205*350*165 |
| VE115DL-S | 35W/58W | 4500/7450 | 3000K/4000K/6500K | 1430*142*53 | 6 | 1485*350*165 |
