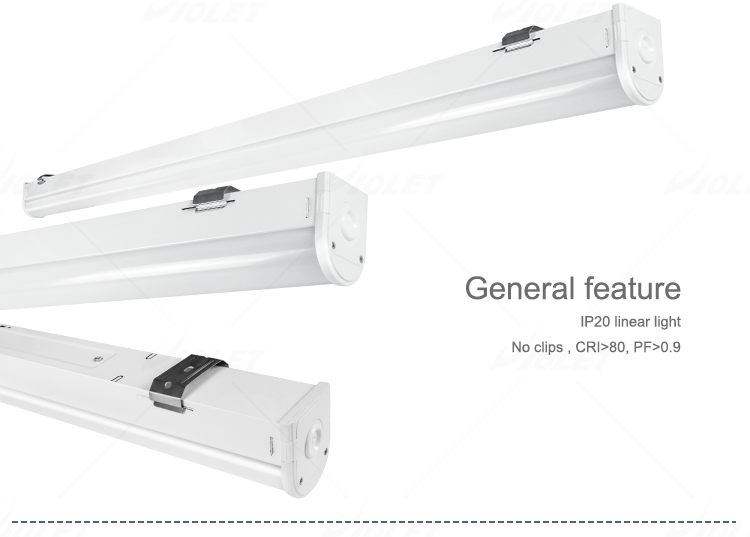

General Characteristics:
1. Punching formed housing by cold rolled steel plate, and powder coated surface; Opaque PC cover with light diffusing agent;
2. Violetlighting offers quality products and a 3-Years Warranty at affordable prices;

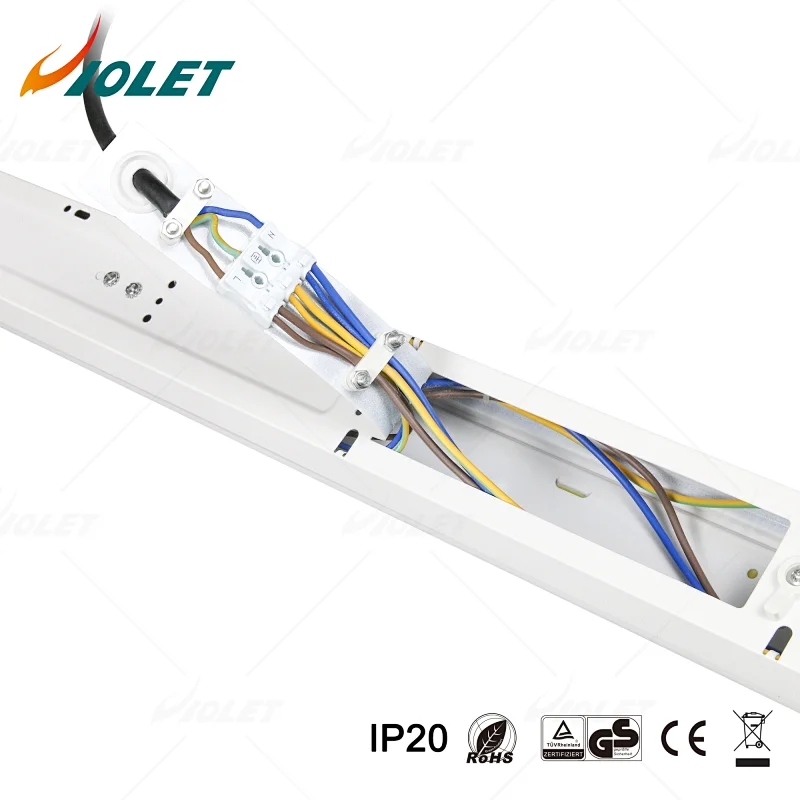

3. Drawer type structure for easy external wiring;

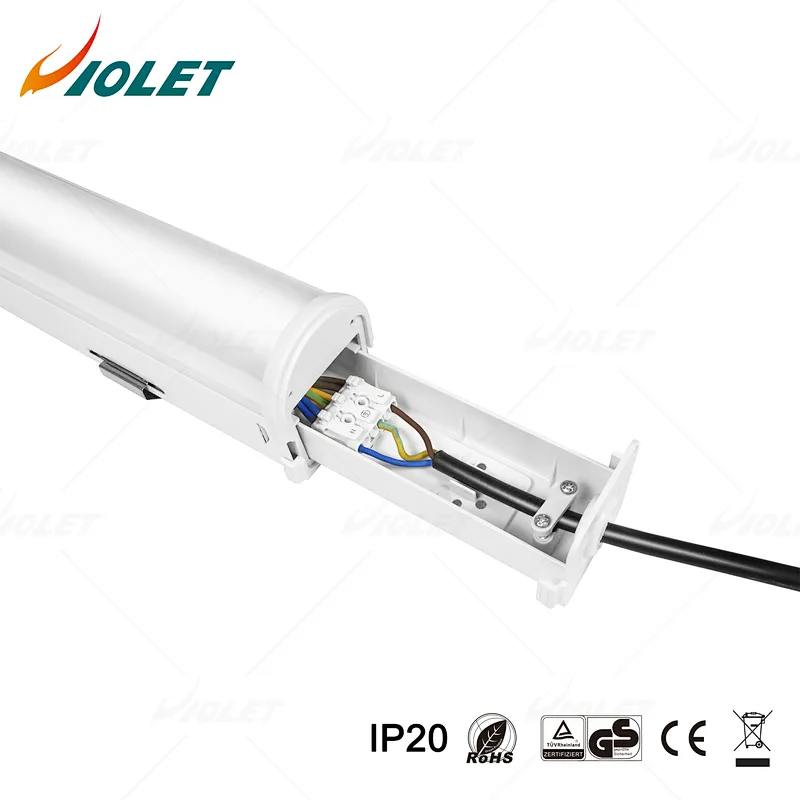

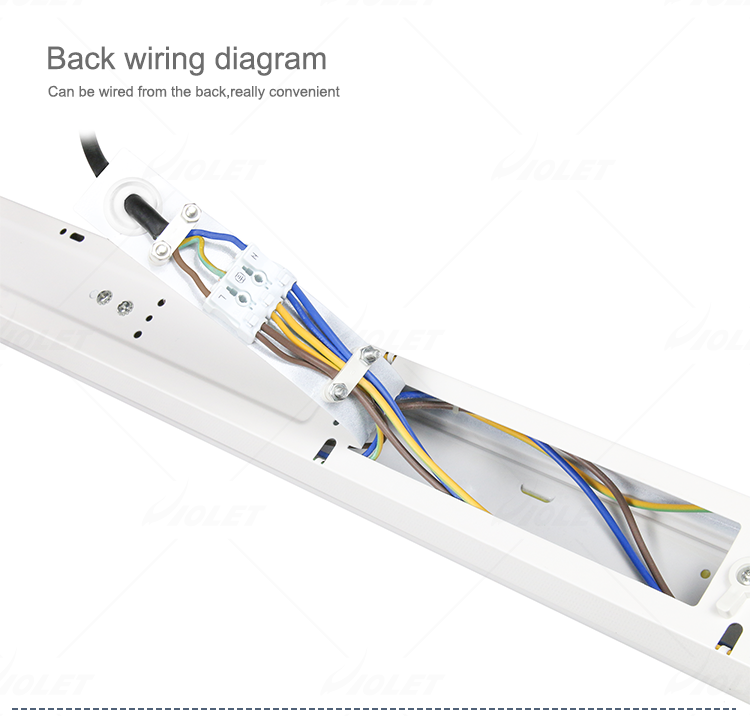

4. The power cable can be installed at the back of the housing too, as shown;
Applications Recommendation:

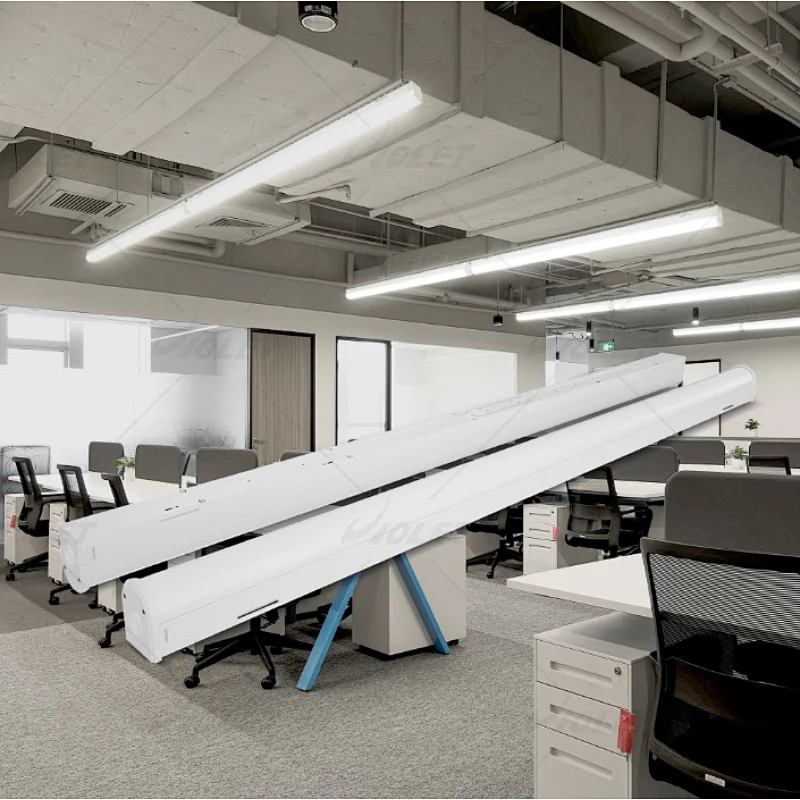

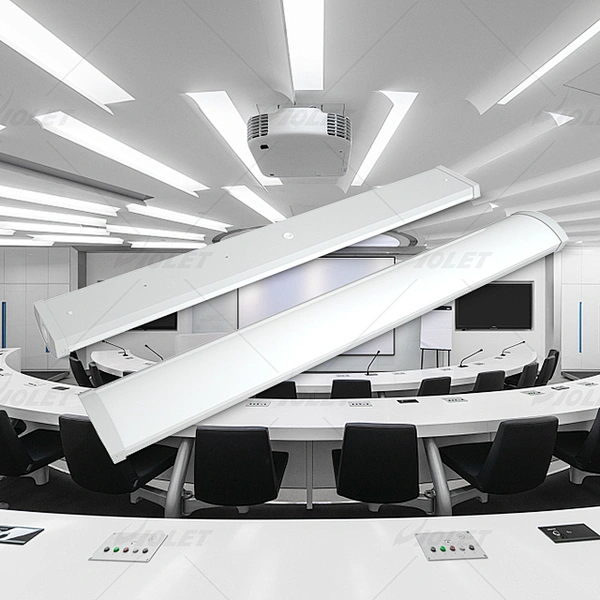

Our LED linear batten lighting is ideal for ceiling and hanging for indoor use, such as office and shopping mall.
Color Temperature (CCT): 3000K/4000K/6000K
Lamp Luminous Efficiency (LM/W): 110LM/W
Color Rendering Index (Ra): 80
Lifespan (Hour): 50000
Light Source: LED
IP Rate: IP20
Warranty (Year): 3-Year
Input Voltage (V): AC 220-240V
Lamp Luminous Flux (LM): 2000LM/4000LM/6000LM
Length: 600MM/1200MM/1500MM
Material: Cold rolled steel + PC
Power: 18W/36W/55W
LED Light Source: SMD 2835
Power Factor: PF>0.9
Beam Angle: 120 Degree
Installation: Ceiling and hanging
Certification: EMC, LVD
Package Detail: Basic package is Brown/White inner box. Brown/white outer box. Colour inner and outer box also can do.
Port: NINGBO
Clips Included: No
| Type | Power (w) | Luminous (lm) | CCT (K) | Dimensions (L×W×H)(mm) | Q'ty/ctn (pcs) | Packing size (mm) |
| VE106DB-02 | 18 | 2000 | 3000/4000K/6000K | 571*63*76 | 8 | 618*300*182 |
| VE112DB-02 | 36 | 4000 | 3000/4000K/6000K | 1133*63*76 | 8 | 1181*300*182 |
| VE115DB-02 | 55 | 6000 | 3000/4000K/6000K | 1415*63*76 | 6 | 1463*230*182 |
