General Characteristics:

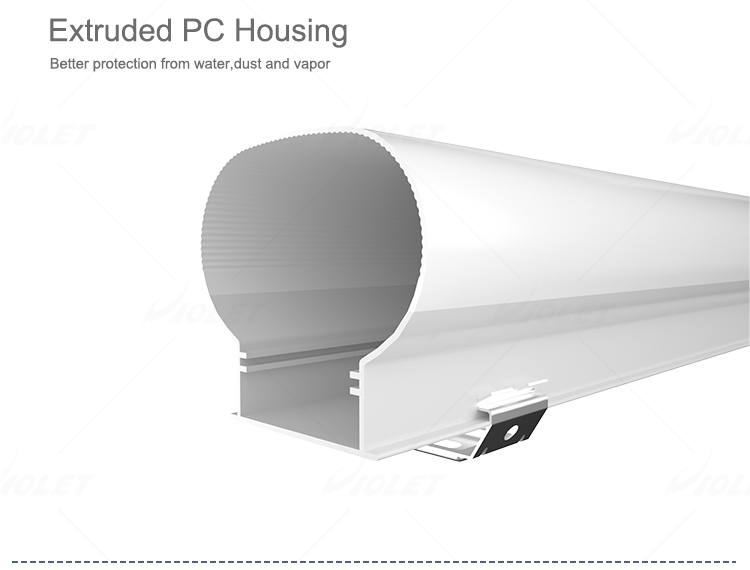

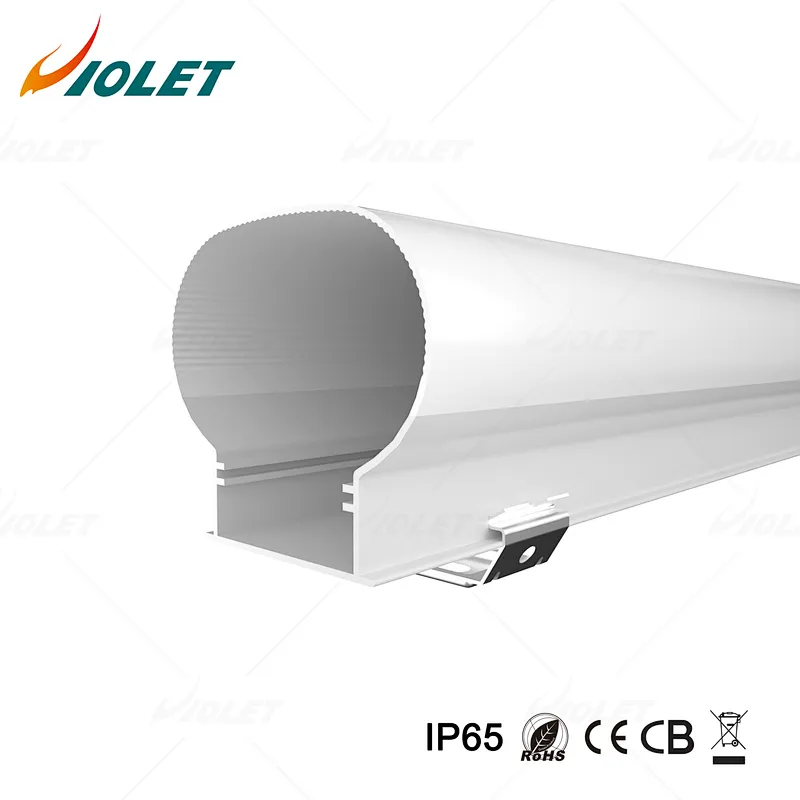

1. Integrates colored PC cover with light diffusing agent. Housing caps sealed by silicon rubber gasket;
2. Garage LED batten lights are relatively easy to install than traditional tube lights. It does not flicker while turning on the switch.

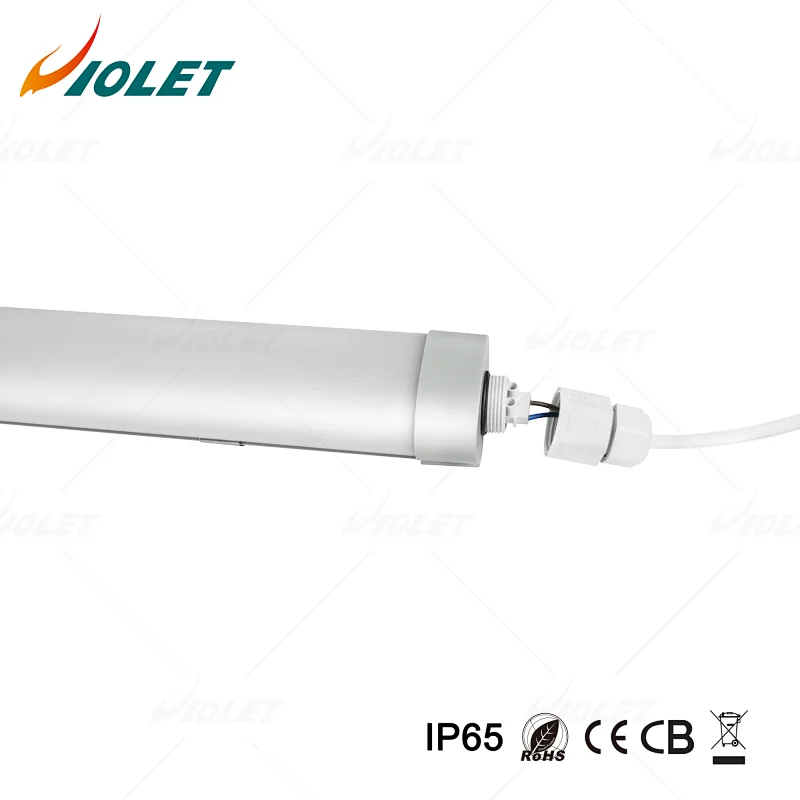

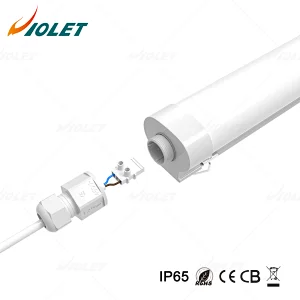

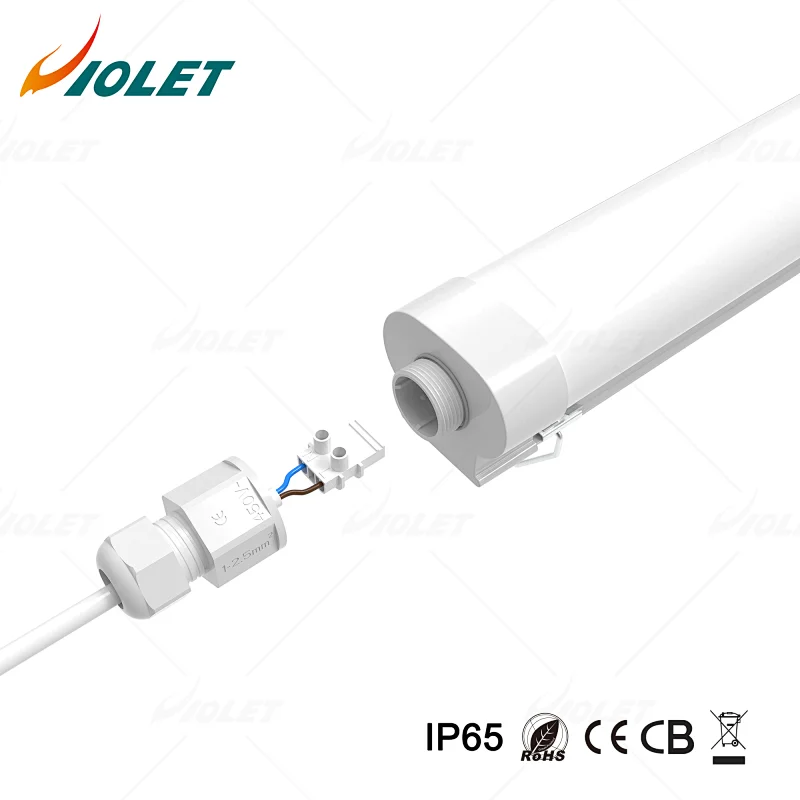

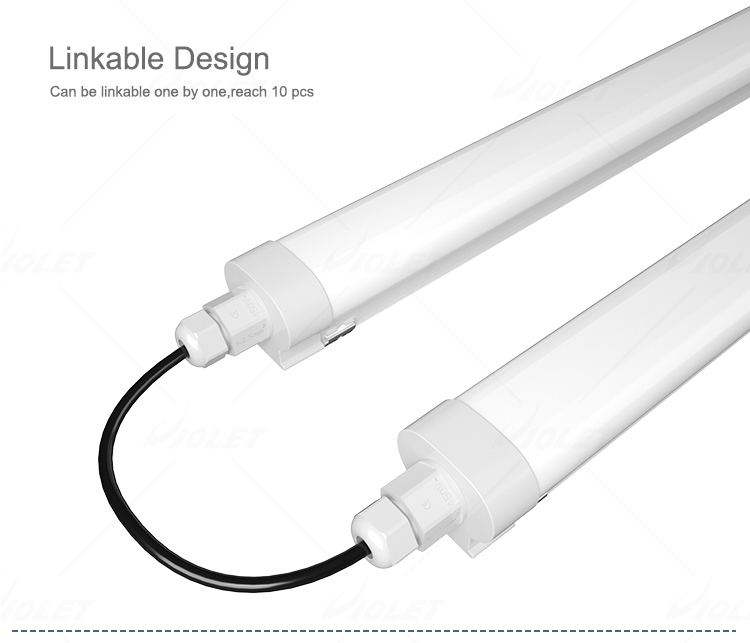

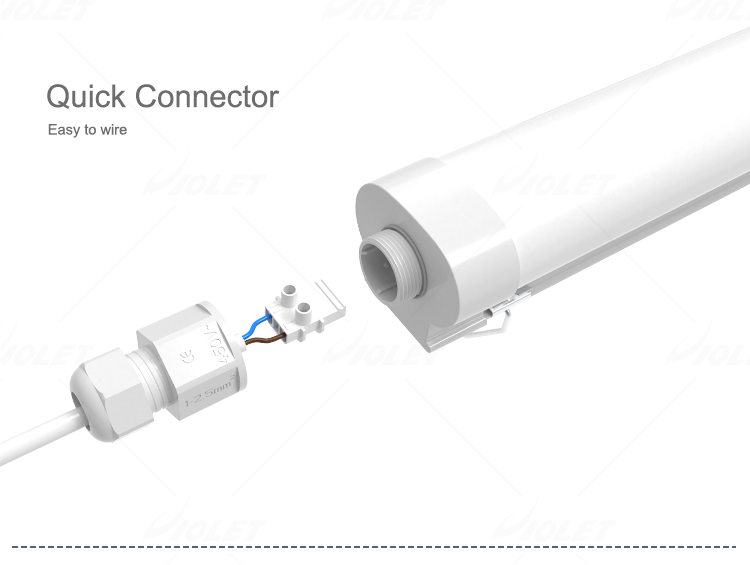

3. Adopt male and female quick connectors, making the wiring easier (No clips);
4. All products pass CB, GS, and LVD approvals. Based on high quality and high specialty, Violet has won the domestic and foreign customers praise and recognition;
Applications Recommendation:
This DOB LED light can be applied in the wet interior, dusty places, and outdoor places such as Cellars, Sheds, Plant rooms, Warehouses, Open and closed parking areas, Workstations, Corridors, etc.
Color Temperature (CCT): 4100K (Neutral White)
Lamp Luminous Efficiency (LM/W): 100LM/W
Color Rendering Index (Ra): 80
Lifespan (Hour): 30000
Light Source: LED
CRI (Ra>): 80

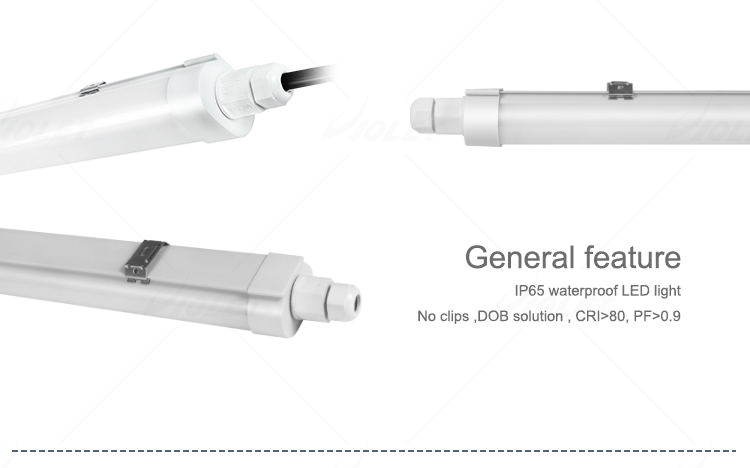

IP Rate: IP65
Warranty (Year): 3-Year
Input Voltage (V): AC 220V (±10%)
Working Lifetime (Hour): 30000
Lamp Luminous Flux (LM):1700LM/3300LM/5100LM
Power: 16.5W/33W/51W
Material: PC + PC
Certification: CB, GS, LVD
Package Detail: Basic package is Brown/White inner box. Brown/white outer box. Colour inner and outer box also can do.
Port: NINGBO
Clips Included: No
| Type | Power (w) | Luminous (lm) | CCT (K) | Dimensions (L×W×H)(mm) | Q'ty/ctn (pcs) | Packing size (mm) |
| VE106GE | 16.5 | 1650/1800 | 4000K | 627*64*44 | 12 | 658*216*208 |
| VE112GE | 33 | 3300/3600 | 4000K | 1186*64*44 | 12 | 1218*216*208 |
| VE115GE | 51 | 5100/5600 | 4000K | 1466*64*44 | 12 | 1498*216*208 |
| VE106GE-TW1 | 16.5 | 1650/1800 | 4000K | 689*64*52 | 12 | 734*216*240 |
| VE112GE-TW1 | 33 | 3300/3600 | 4000K | 1249*64*52 | 12 | 1289*216*240 |
| VE115GE-TW1 | 51 | 5100/5600 | 4000K | 1529*64*52 | 12 | 1565*216*240 |
